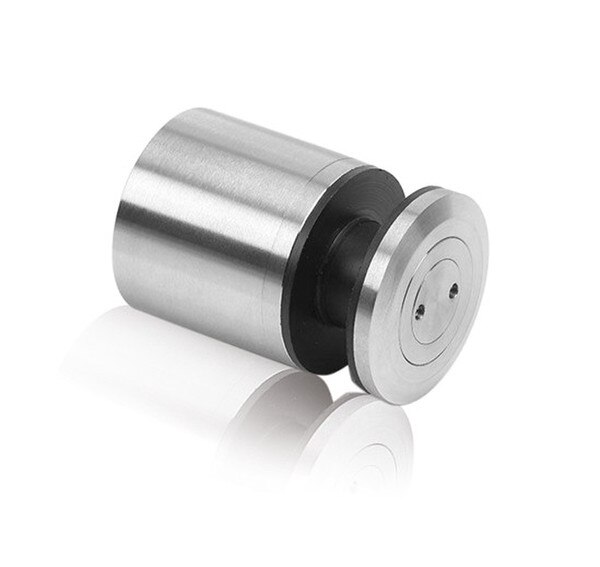

Point Fixing 1-15/16" - Brushed Stainless Anodzied - Stainless Steel AISI 304 - 3/8" to 1/2" Glass - 1-3/16" Hole

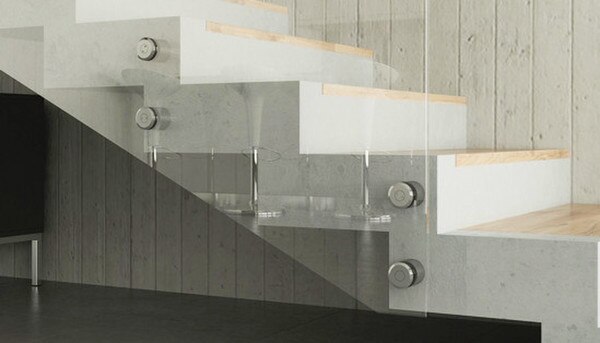

Glass standoffs, also known as single point fixing hardware can be used both in interior and exterior applications and stand out due to their versatility. The hardware is specifically designed to show off the glass, rather than the hardware especially in balustrades or when used as a wall cladding. A sturdy design according to the European DIN EN 1991-1-1 together with the precision manufacturing emphasizes their high-quality. The standoff’s come in different diameters and distance from the wall, depending of the application. The point fixings support both tempered glass and laminated safety glass with a thickness between ½” and 11/16”. (12mm - 21.52mm).
The precise vertical and horizontal adjustment options guarantee the perfect alignment of the glass. It makes the installation simple, saves time and is specifically recommeded for uneven walls.
The General Building Inspection Test Certificate (AbP) guarantees reliable safety.

• use at least 4 pieces depending on glass dimensions
• For tempered and laminated safety glass
• Please order assembly tool BO 5214041 separately.

Technical Data

• Easy installation and fi xing of the glass
• Sturdy design in accordance with DIN EN 1991-1-1
• Can be adjusted through elongated hole in connection element.

Technical Data

• Diameter: ø 1-15/16 in (ø 50 mm)
• adjustable: yes
• Adjustment range wall distance: 0 - 3/16 in (0 - 5 mm)
• Drill hole in glass: ø 1-3/16 in (ø 30 mm)
