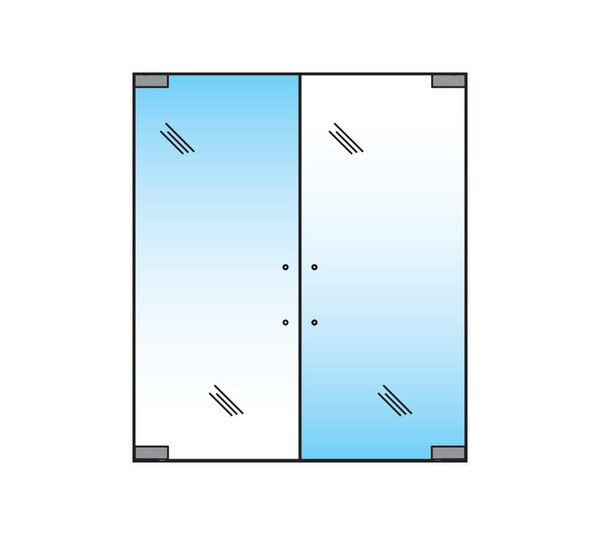

ALVA E2 - Dual-Swing Door Opening - Heavy Duty, HO90 - Polished Stainless
Details
Bohle is proud to present Alva Elevations, an innovative swing door and partition hardware program that makes it simple to glaze the entire opening. Using the new Alva self-closing door patch system as the foundation, the glass hardware requirements for the opening can be selected, quoted, and ordered under a simple part number.
Product Highlights
Technical Information
What's Included
Product Highlights
- Quick installation without floor recess
- Only two drill holes required
- Clean installation with no visible mounting points
- Easy adjustment
- Black inserts for subdued look
Technical Information
- Door width 29-1/2" - 39-3/8" Up to 49” with HD version (749mm - 1000mm up to 1245mm with HD)
- Maximum door height 108" (2590 mm)
- Maximum door weight 220 lbs (100 kg)
- Glass thickness tempered glass 5/16" - 1/2" (8 - 12 mm)
- Adjustable closing speed from 170° - 15° and 15° - 0°
- Adjustable zero position ±3°
- For averagely frequented buildings
- Tested by ift Rosenheim with 500,000 cycles as per DIN EN 1154
- Can be used with stopper
- Suitable for indoor and covered outdoor use
- DIN EN 1670 Corrosion resistance level 3: Outdoor areas where occasional or frequent moisture, rain or dew may occur
- Temperature operation -4 F° to +122 F° (-20° - +50°C)
- Patch size: 7-1/4" x 2-3/4" (184 x 70 mm)
- Do not use with laminated safety glass
- Do not use as a shower door

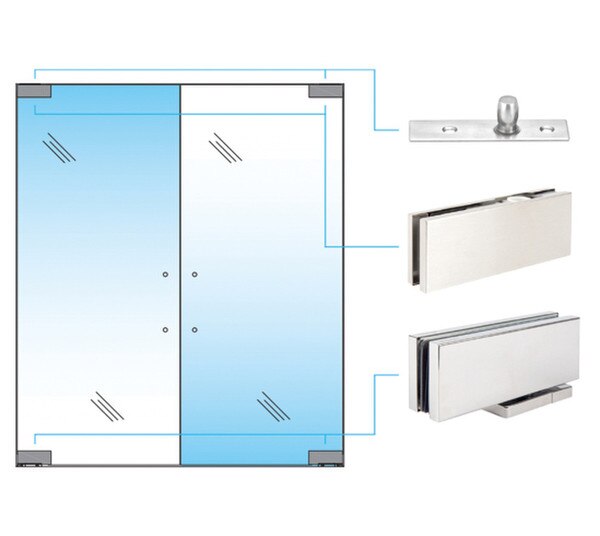

What's Included
- 2x Top Pivot Plate
- 2x PT20 PLUS Top Patch
- 2x Bohle Alva® Self Closing Hydraulic Bottom Patch
- 2x Bottom Patch Mounting Plate
Downloads
- Brochures
- ALVA - Elevations Catalog
Instruction Manuals - ALVA - Instruction Manual EN3 / ADA (Standard Duty)
- ALVA - Instruction Manual EN5 (Heavy Duty)
Technical Information - ALVA - Limits and Deductions
- ALVA - Elevations Contents
- ALVA - Glass Cutouts
- Architectural U Channel - Two Part Channel Specifications
