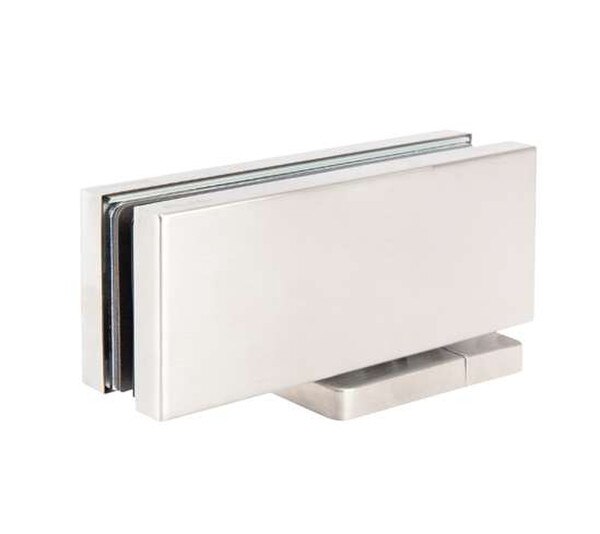

Component Bottom Patch - ADA - HO105 - Brushed Stainless

SKU BO5217000
Finish: Brushed Stainless
Function: Bottom Patch
$256.59
(0)No Reviews yet

In Stock - Ships Today

Details

With its innovative function and design, the new Alva self-closing door patch is the best in its class. The clean exterior design houses the highest quality hydraulic system which controls the adjustable sweep and latch functions of the system. The use of the adjustment valves ensure flawless opening and control for use in both residential and commercial applications.

Product Highlights

  • Quick installation without floor recess
  • Only two drill holes required
  • Clean installation with no visible mounting points
  • Easy adjustment
  • Black inserts for subdued look


Technical Information

  • Door width 29-1/2" - 39-3/8" Up to 49” with HD version (749mm - 1000mm up to 1245mm with HD)
  • Maximum door height 108" (2590 mm)
  • Maximum door weight 220 lbs (100 kg)
  • Glass thickness tempered glass 5/16" - 1/2" (8 - 12 mm)
  • Adjustable closing speed from 170° - 15° and 15° - 0°
  • Adjustable zero position ±3°
  • For averagely frequented buildings
  • Tested by ift Rosenheim with 500,000 cycles as per DIN EN 1154
  • Can be used with stopper
  • Suitable for indoor and covered outdoor use
  • DIN EN 1670 Corrosion resistance level 3: Outdoor areas where occasional or frequent moisture, rain or dew may occur
  • Temperature operation -4 F° to +122 F° (-20° - +50°C)
  • Patch size: 7-1/4" x 2-3/4" (184 x 70 mm)
  • Do not use with laminated safety glass
  • Do not use as a shower door
