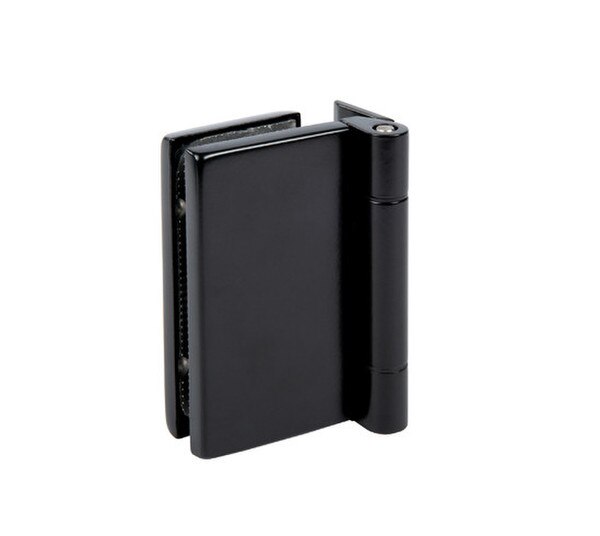

FrameTec Select 2.0 - Glass Door Hinge with Mounting Plate - Black

The frame-independent glass door hinge in classy, timeless design perfectly adapts to any frame and is very well suited for our Bohle FrameTec Select 2.0 glass partitioning systems. The aluminum door hinge was durability tested in line with DIN EN 1935 (500,000 closing cycles) and tested for corrosion resistance (class 4) in line with DIN EN 1670.

• Glass thickness tempered glass 5/16", 25/64", 15/32" (8, 10, 12 mm), laminated glass 3/8", 27/64", 1/2" (8.76, 10.76, 12.76 mm)
• for use on DIN left and DIN right

Technical Data

• Door Type: Stopper
• Self-Closing: No
• Max. Door Weight Per Pair: 110 lbs
• Max. Door Width: 39-3/8 in
• Material: Aluminum
