BA5216836 - ALVA Single Door - Below 39" - Hold Open 90° - Matte Black
Product Description
Product Info

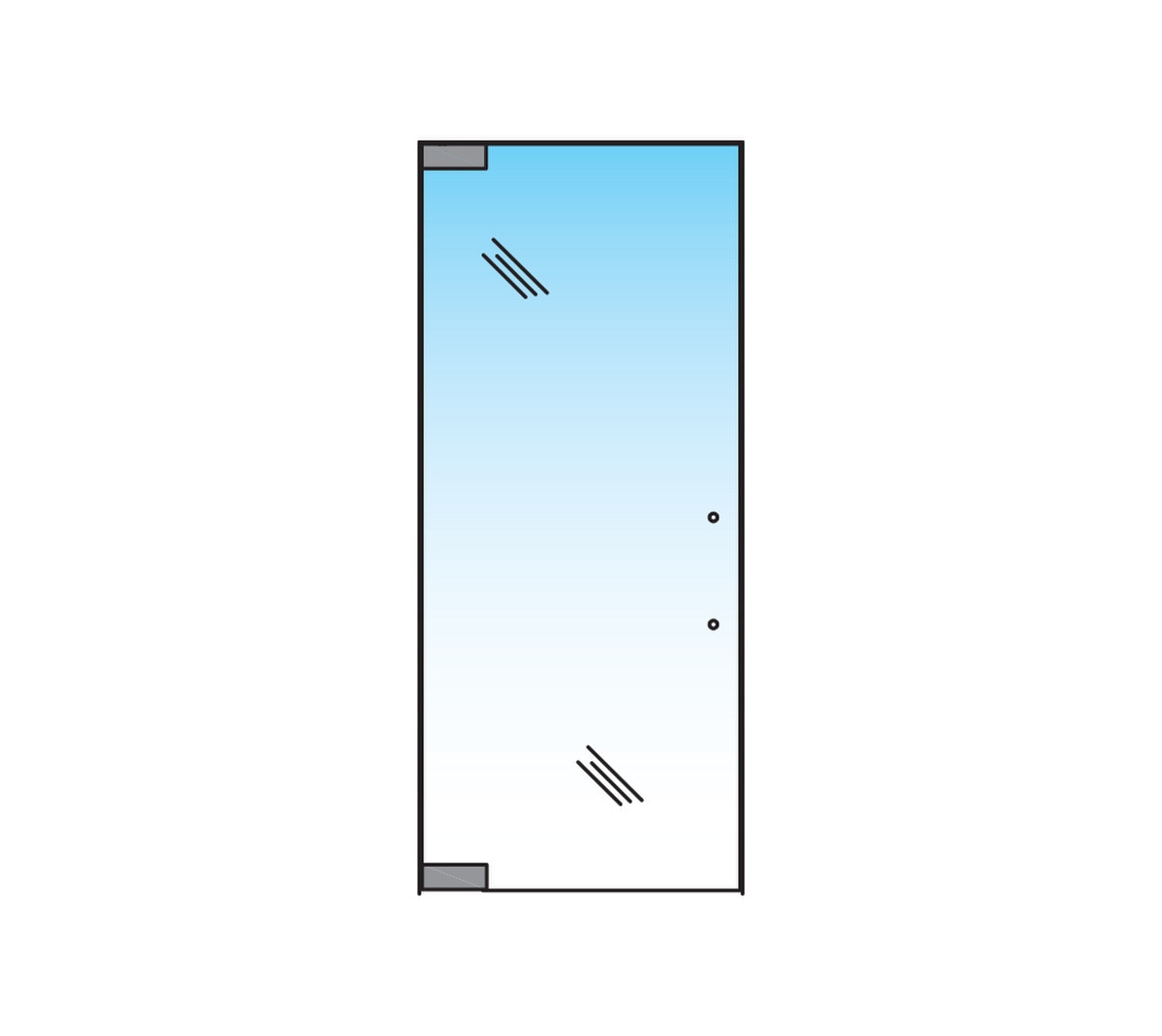

This set includes everything needed to mount 1 hydraulic swing door to a finished opening up to 108" tall.
About ALVA
With its innovative function and design, the new Alva self-closing door patch is the best in its class. The clean exterior design houses the highest quality hydraulic system which controls the adjustable sweep and latch functions of the system. The use of the adjustment valves ensure flawless opening and control for use in both residential and commercial applications.
Product Highlights
- Quick installation without floor recess
- Only two drill holes required
- Clean installation with no visible mounting points
- Easy adjustment
- Black inserts for subdued look
- For averagely frequented buildings
- Can be used with stopper
Technical Info
- Material: Stainless Steel 316
- Door Width and Opening Force: Standard 39" and Below Door
- Hold Open: 90°
- Max Weight lbs: 220 lbs
- Max Height inches: 108"
- For Glass Thickness: 5/16-1/2"
- Finish: Matte Black
- Weight lbs: 6.7
- Adjustable closing speed from 170° - 15° and 15° - 0°
- Adjustable zero position ±3°
- Tested by ift Rosenheim for 500,000 cycles as per DIN EN 1154
- Suitable for indoor and covered outdoor use
- DIN EN 1670 Corrosion resistance level 3: Outdoor areas where occasional moisture, rain or dew may occur
- Temperature operation -4 F° to +122 F° (-20° - +50°C)

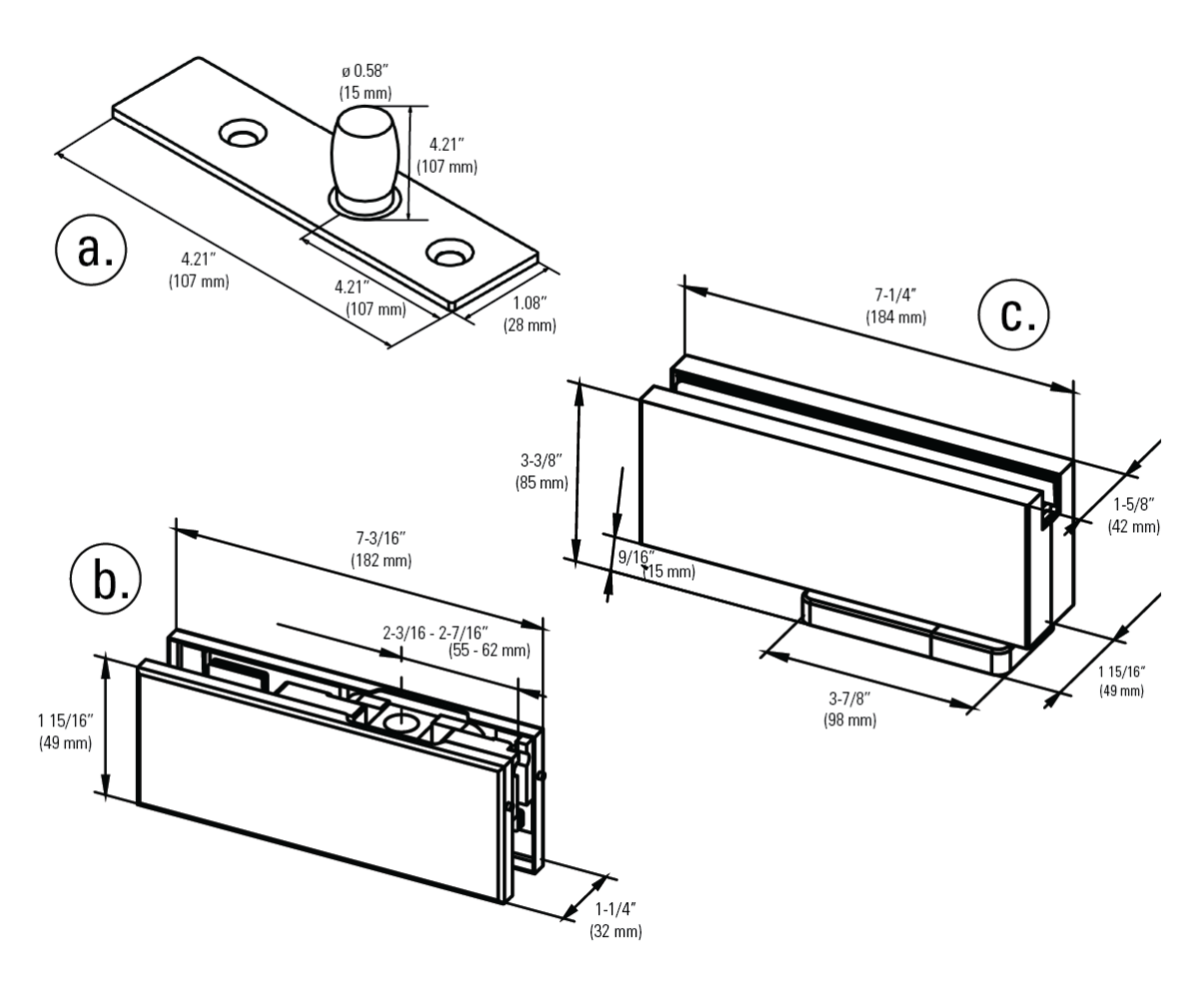

- Patch size: 7-1/4" x 2-3/4" (184 x 70 mm)

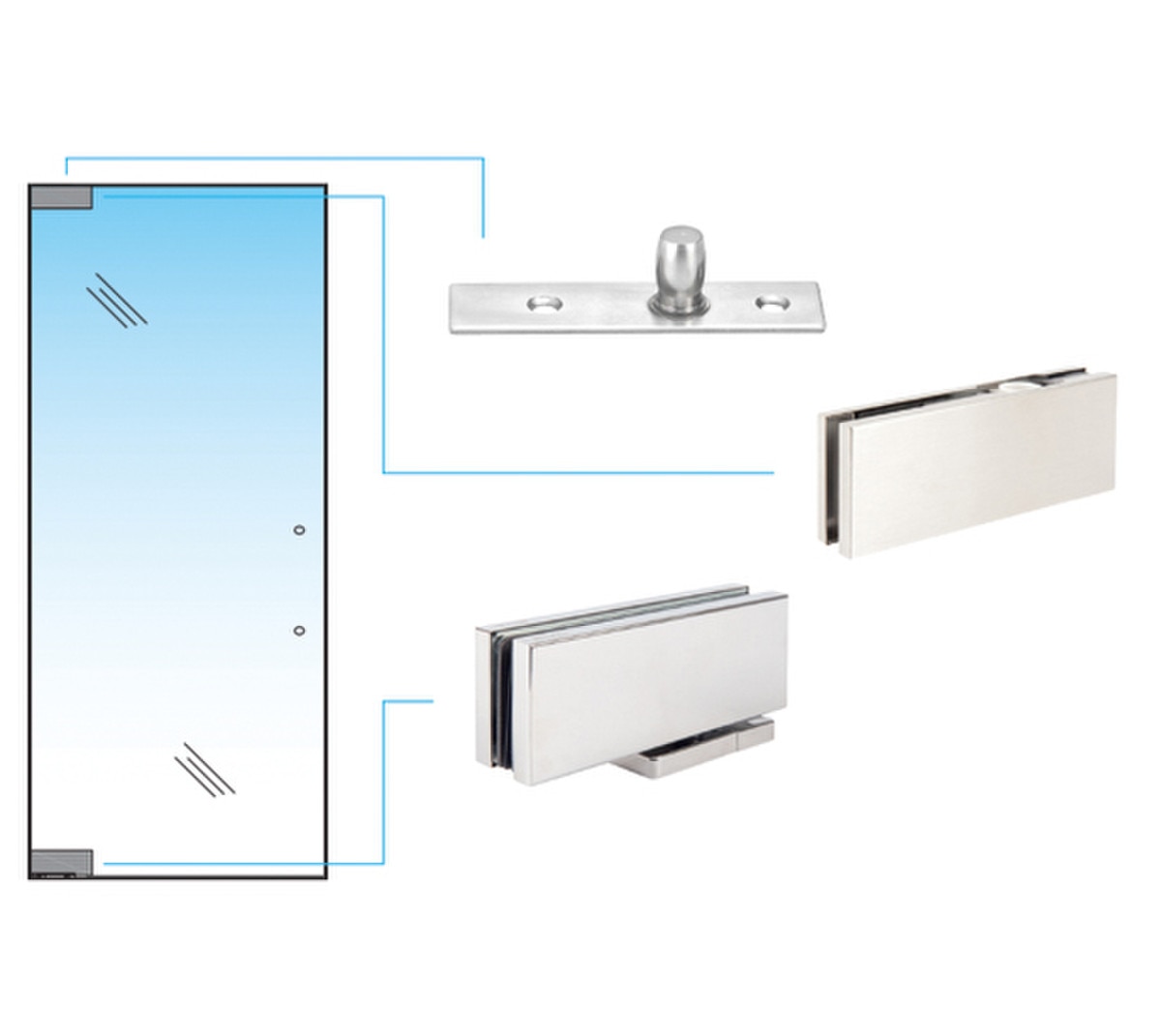

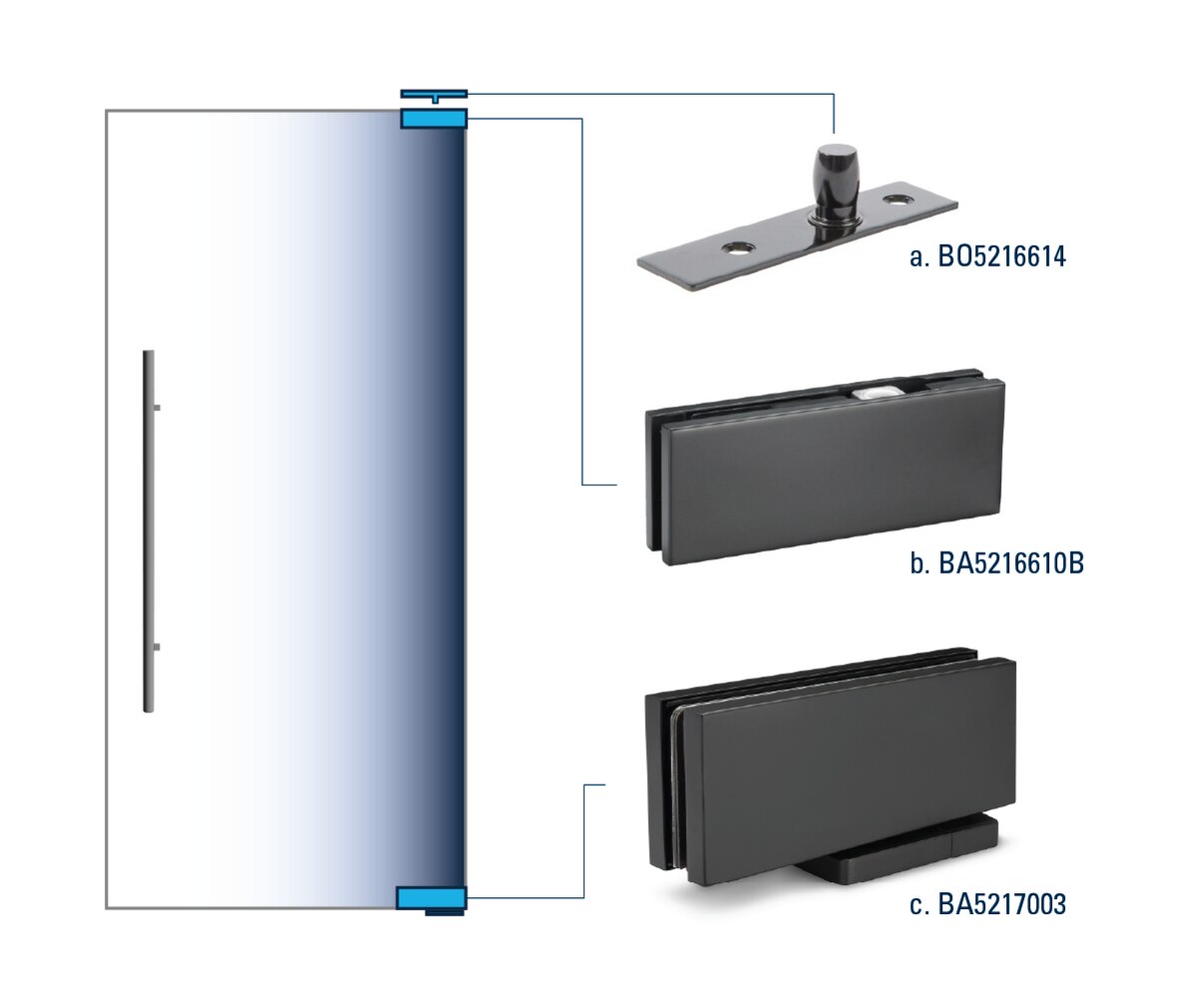

What's Included
- 1x AHBO-SD090-SNO - Hydraulic Bottom Patch - Below 39" - Hold Open 90° - No Cover Caps
- 1x BO5216637B - Cover Cap Set for Standard 39" and Below Door & Wide 39" to 49" Door Alva Self-Closing Patch - Matte Black
- 2x BO5216653 - Base Plate for Alva Self-Closing Patch Fitting
- 1x AHTO-TP020-SNO - PT20 - Alva Top Door Patch - 5/16 to 1/2" Glass - No Cover Caps
- 1x BO5216642 - Cover Cap Set for Alva Top Door Patch PT20 - Matte Black
- 2x BO5216614 - PT24 - Alva Top Pivot - Matte Black
