  • BO03A160 - Silberschnitt Carbide Cutting Wheel - Active - Ø5.6x1.08xØ1.42mm - 160° - Box of 10

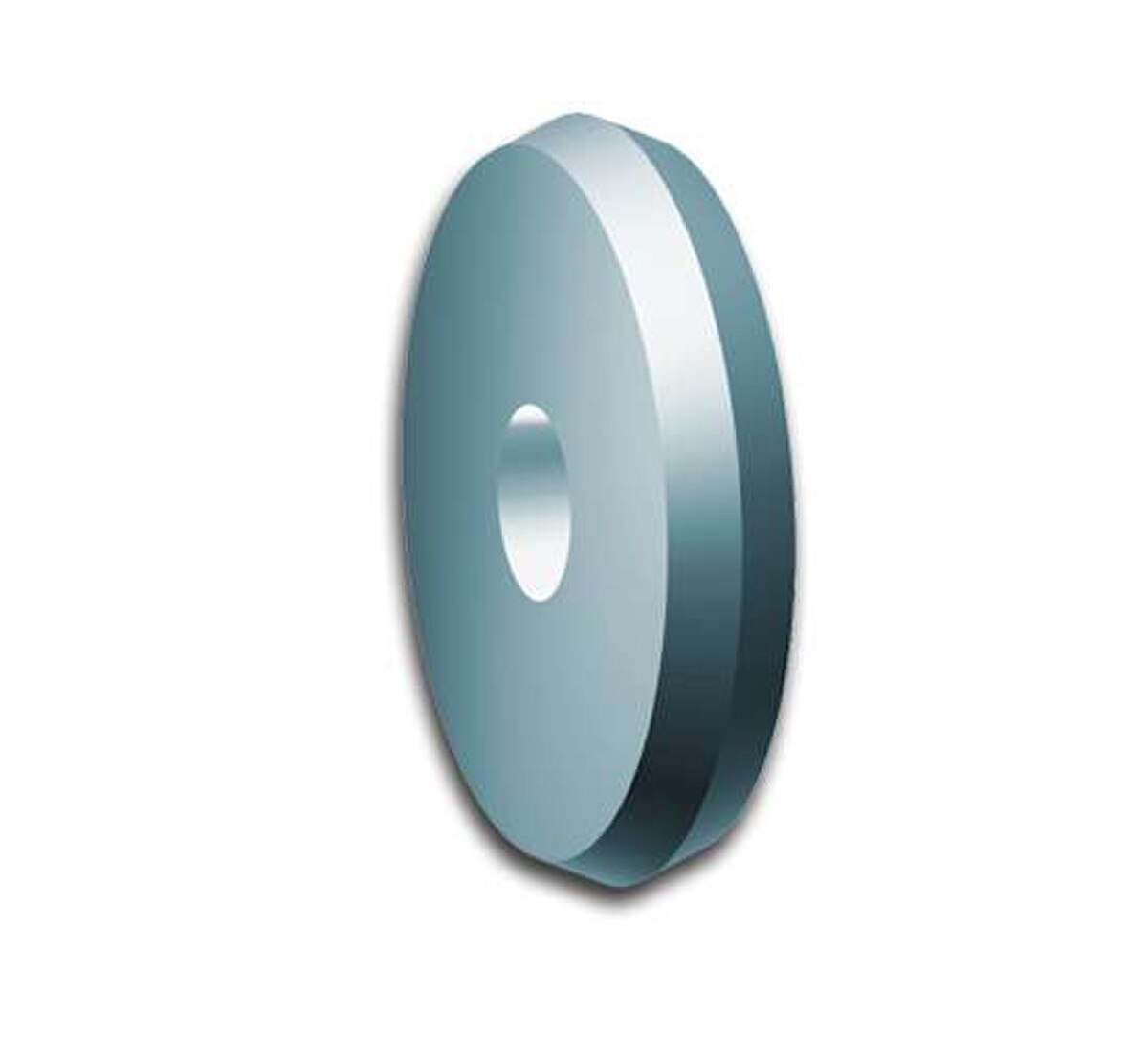

BO03A160 - Silberschnitt Carbide Cutting Wheel - Active - Ø5.6x1.08xØ1.42mm - 160° - Box of 10

SKU BO03A160
Function: Cutting Wheel
$144.08

In Stock - Ships Today

Product Description

About Carbide Wheels

Bohle recognised the extraordinary properties of tungsten carbide early on. An increased running performance compared to conventional steel wheels is one of the great advantages of the material. Furthermore, tungsten carbide cutting wheels are characterised by uniformly good cutting properties and the resulting clean breaking edges for different glass thicknesses. However, it is not only the basic material that is decisive for the quality. The greatest know-how lies in the further processing of the wheel blanks, which are given their very special grind on specially developed machines. Only the grind, the design of which depends on the subsequent application, leads to a consistently long service life and optimum cutting results. The majority of well-known cutting machine manufacturers worldwide trust in the proven Silberschnitt® quality and equip their systems with industrial cutting technology from Bohle as standard.

About Silberschnitt Cutting Wheels

Highest precision, best quality and efficient tool life. First-class cutting technology is a question of perfection. Silberschnitt® cutting wheels from Bohle are characterised by the highest quality standards and a long service life. They are manufactured from high-quality raw materials on precision machines with extraordinary care, and convince through excellent cutting results with particularly long service lives.

Product Highlights

  • Long service life
  • High quality raw materials
  • Superior running properties
  • Quality Made in Germany

Technical Info

  • Material: Carbide
  • Weight lbs: 0.1
  • Outer Diameter (OD): 5.6mm
  • Angle: 160°
  • Coated: No
  • Grind: Active
  • Thickness: 1.08mm
  • Inner Diameter: 1.42mm
  • Microstructured: No
  • For open cuts in glass thicknesses of 2 to 6 mm in the automotive field
  • For standard cutting with an angle from 145° and up
  • For coated glass such as low-E

What's Included

  • 10x Cutting Wheels

Downloads

Overview of Silberschnitt Automatic Cutting
