Bottom/Side 2-Part Channel - 5/16" to 7/8" Glass - 118" - Satin Anodized

SKU BO5201750
Finish: Satin Anodized
Function: 2-Part Channel
$147.22
(0)No Reviews yet

In Stock - Ships Today

Details

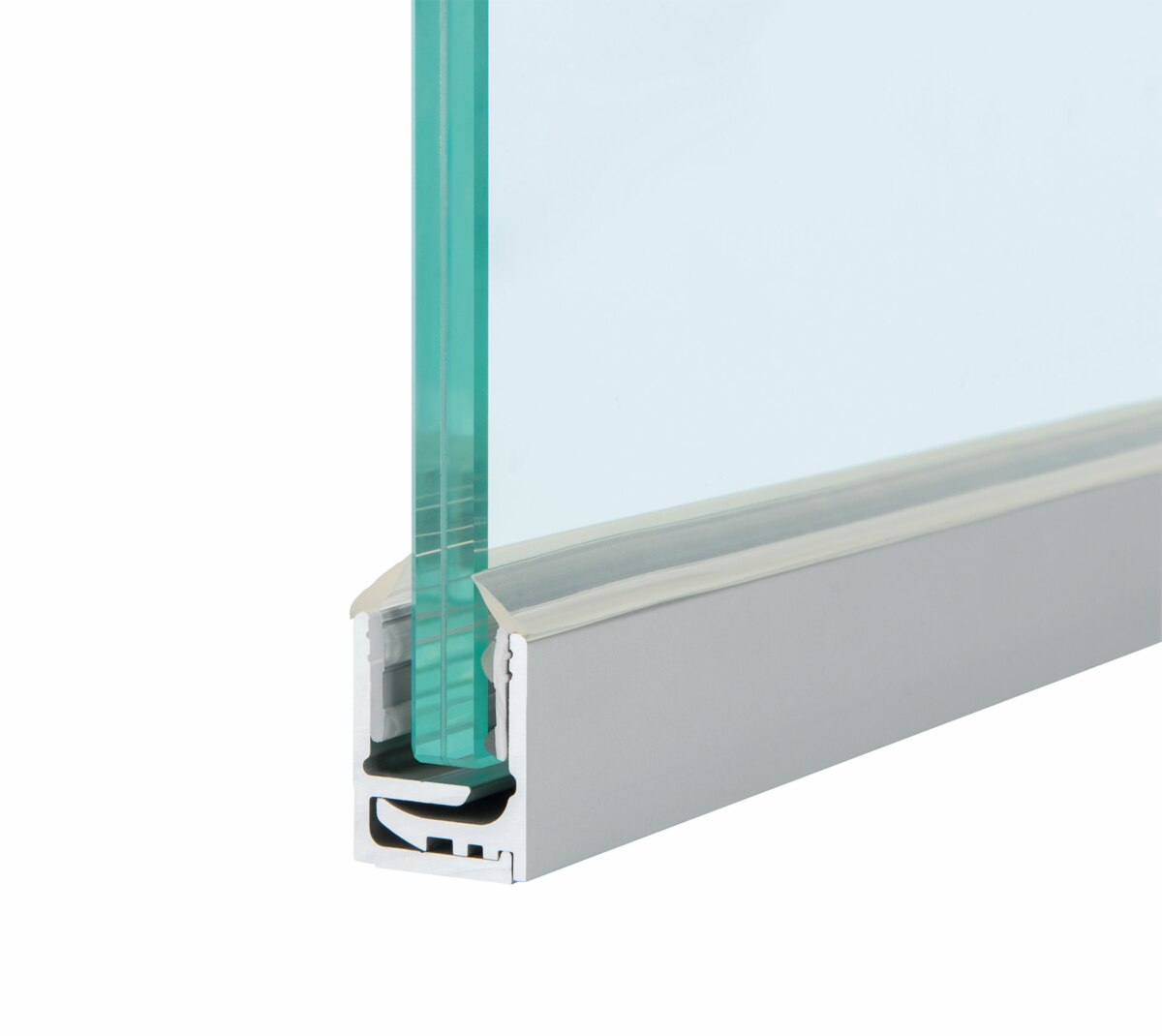

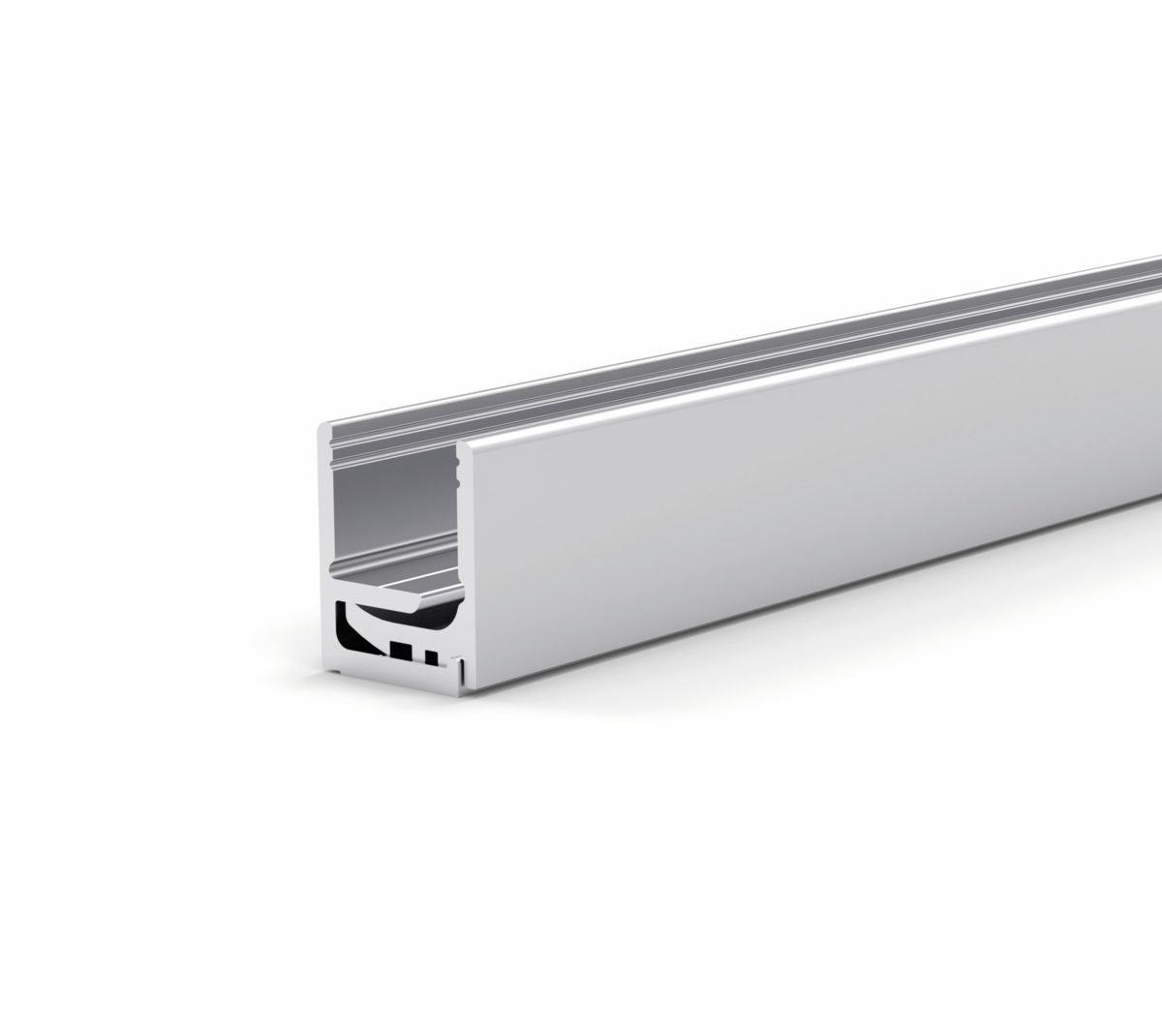

Our top-selling clamp-on profile for wall connection ensures quick and cost-efficient mounting. The glass pane is held safely in place with high quality sealing strips; additional sealing with silicone is not necessary. The profiles come pre-drilled. Thanks to a two-part construction with different detent positions and sealing strips, glass panes ranging from 5/16 - 7/8" (8 to 21.52 mm) can be installed. The suitable cover caps provide a neat finish.
The clamp-on profile for wall connection is available with aluminum colored, stainless steel look anodized and mill finished aluminum finishes.
  • No glass processing required
  • Easy mounting
  • Three ratchet positions for fixing glass 5/16 up to 27/32" (8 - 21.52 mm)

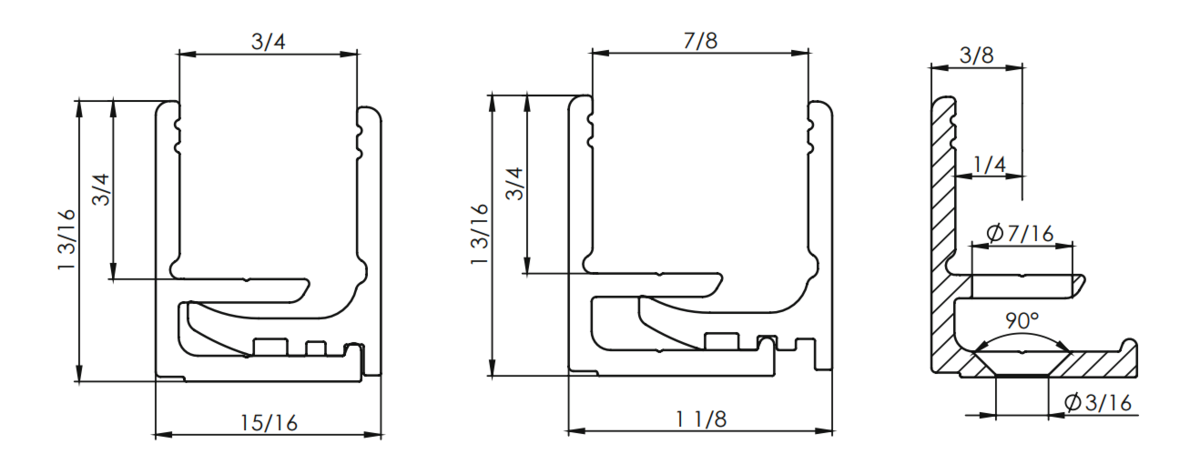

  • The profiles are pre-drilled.The profile width varies according to the ratchet position (ratchet position 1: glass thickness 8 -10,76 mm, width 24 mm, ratchet position 2: glass thickness 12 - 13.52 mm, width 28 mm; ratched position 3: glass thickness 16.76 - 21.52 mm, width 33 mm)
  • Note: Please add PVC gasket suitable for your glass thickness to your order
  • Glass thickness 5/16" - 27/32" (8 - 21.52 mm)
