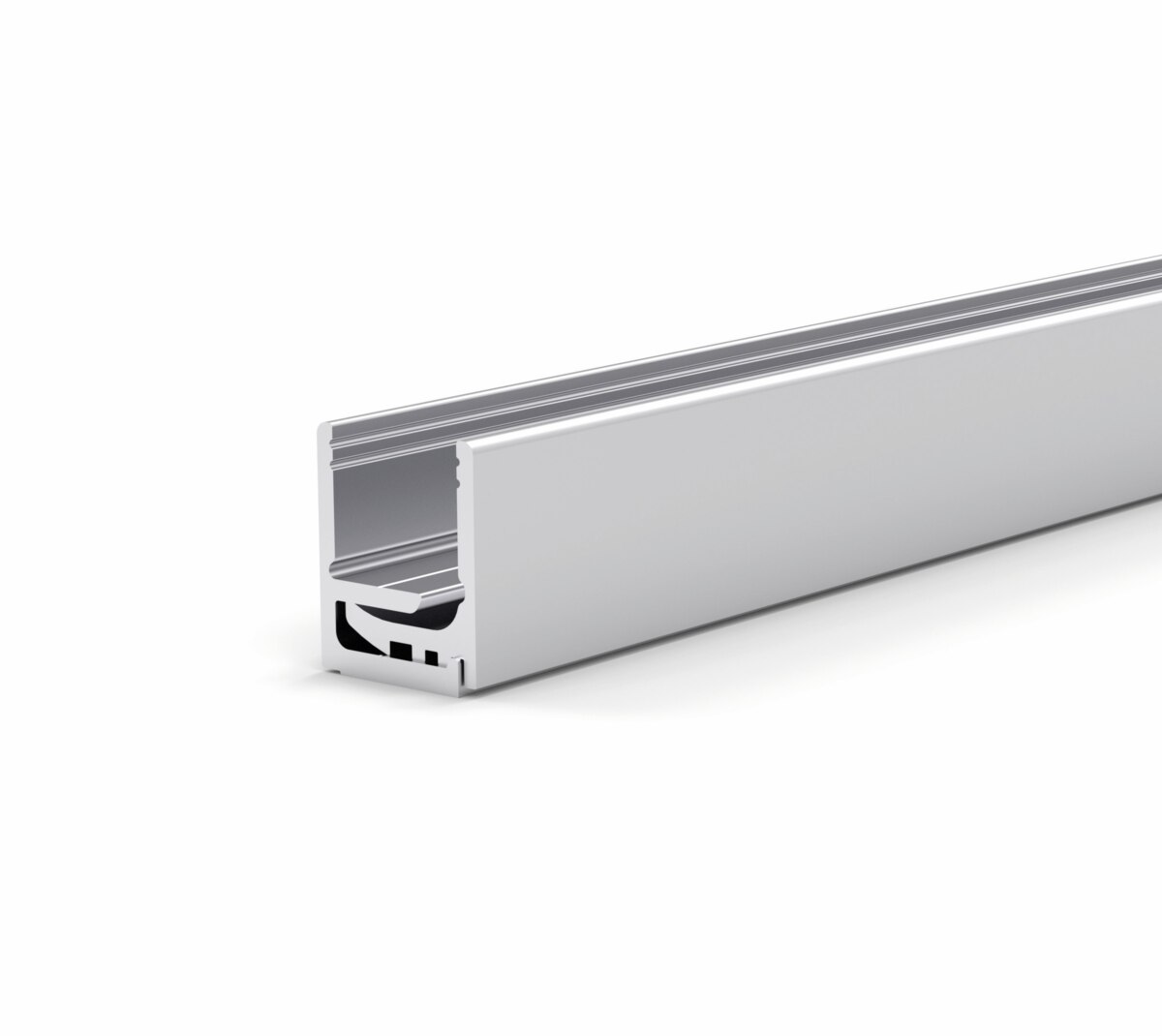

BO5201749 - Bottom/Side 2-Part Channel - 5/16" to 9/16" Glass - 94" - Satin Anodized
Product Description
Product Info

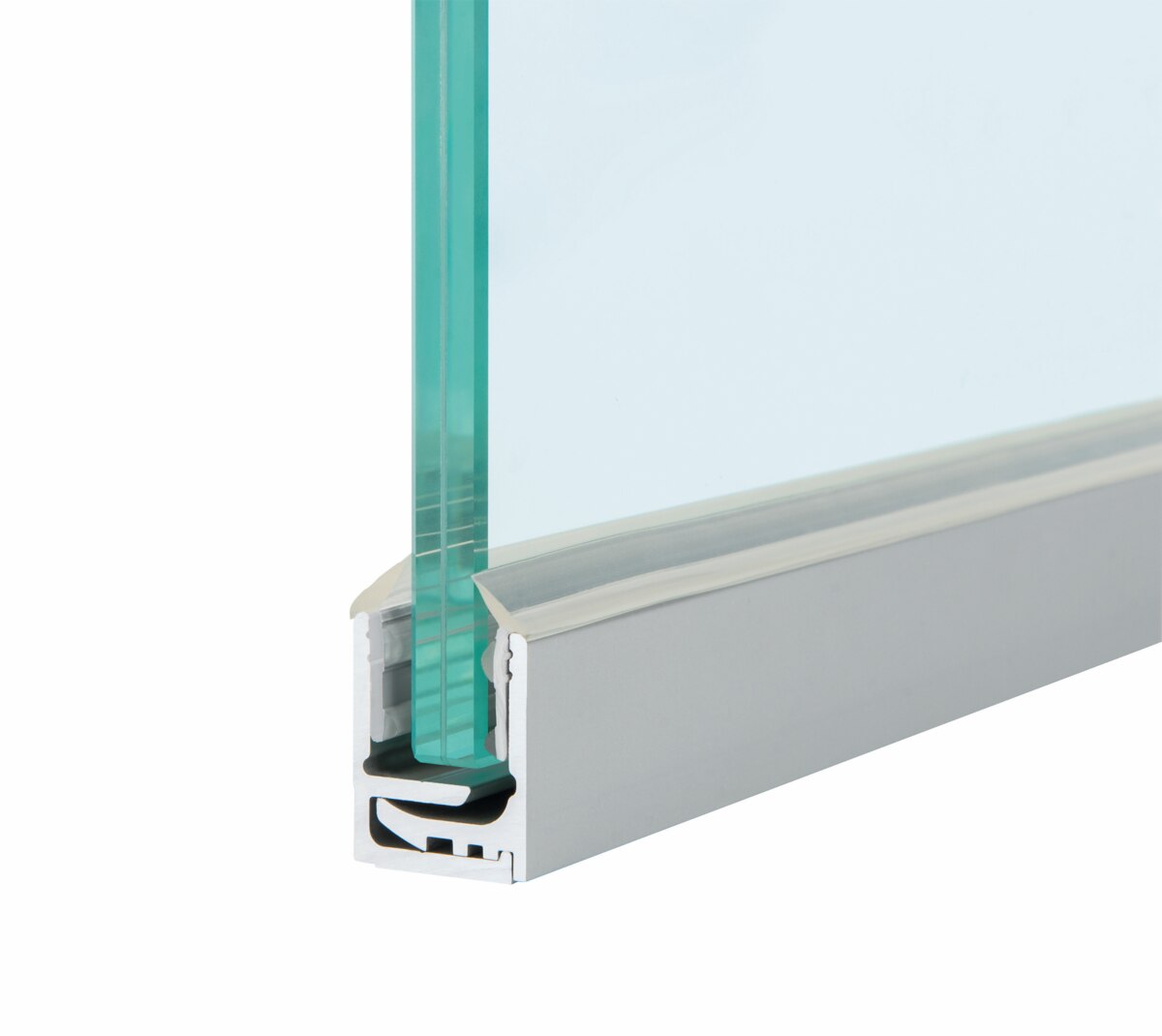

The Bottom/Side 2-Part Channel allows the same size channel to be used around a pane, providing maximum clear views and matching hardware size vs a lift and drop system.
About the 2 Part Channel System
The two-part frame profile, delivered pre-drilled, mounts easily on the floor or wall for a flawless fit. For ceiling installations, you must use the one-piece frame profiles—designed to prevent glass panes from tilting and guarantee safe, hassle-free installation. High-quality plug-in seals eliminate the need for silicone, saving time and effort. Complete the look with matching cover caps for a sleek, professional finish that elevates any room divider.
Technical Info
- Material: Aluminum
- For Glass Thickness: 5/16-9/16"
- Finish: Satin Anodized
- Length: 94 Inches
- Weight lbs: 4.4
- Pre drilled every 11.8"
What's Included
- 1x Bottom/Side 2-Part Channel - 5/16" to 9/16" Glass - 94" - Satin Anodized - BO5201749
