DBF-L2326-1SA - BT Kit Flush Ceiling Mounting - 236in - 264lbs - Single Track - Single Door - Satin Anodized
Product Description
Product Info

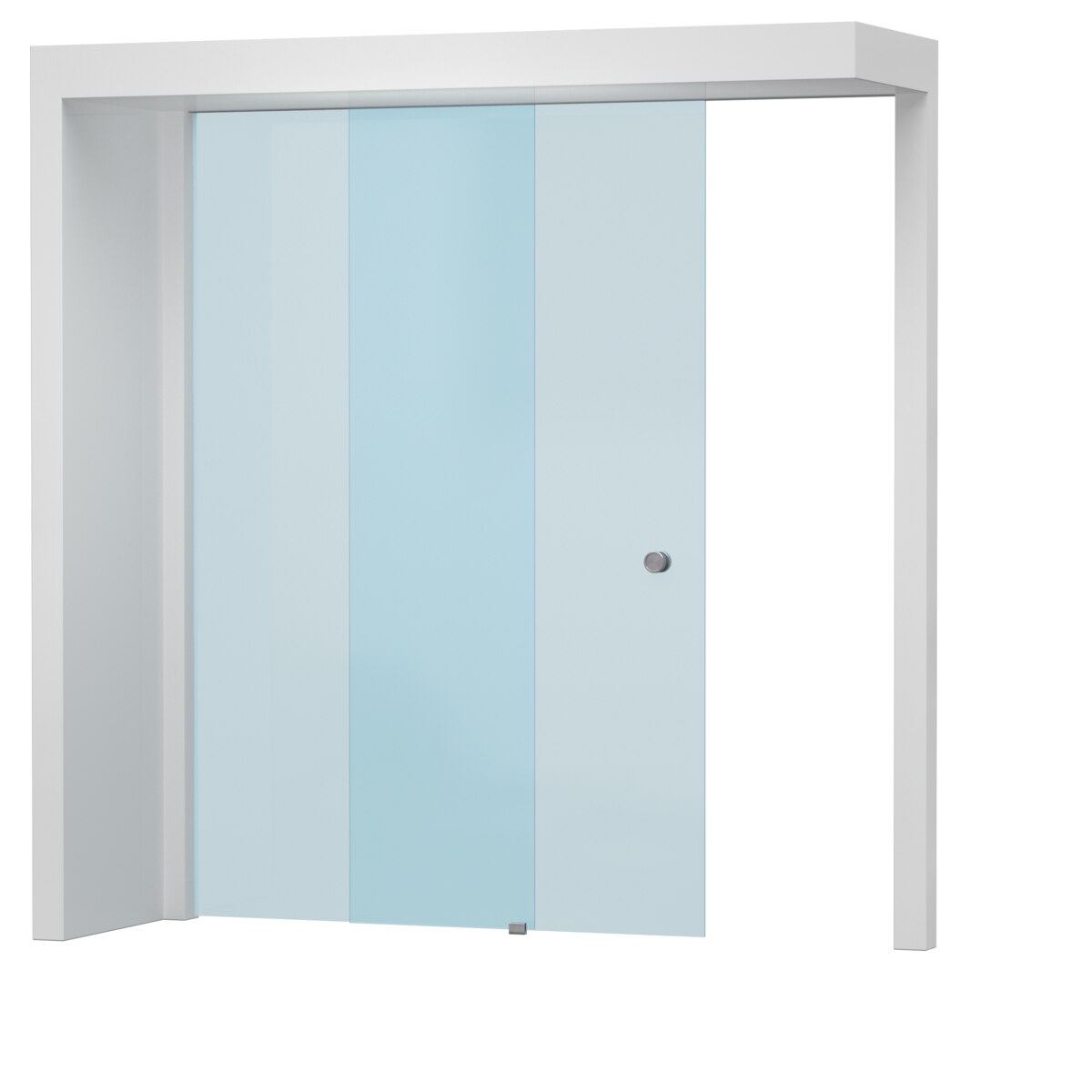

This kit provides everything neeeded to install a single, recessed soft close door with fixed profiles for a sidelite.
About MasterTrack® BT
The MasterTrack® BT custom sliding door series is engineered for versatile installation environments — surpassing standard ceiling or wall-mounted setups. Designed with flexibility in mind, the modular MasterTrack® BT system enables limitless interior design possibilities. Whether you're configuring multi-panel runners, pocket doors or seamless flush-to-ceiling sliding doors, this system supports rapid installation using just a few key components, including a compact track with an integrated glass suspension for a modern, minimalist appearance.
Product Highlights
- Ultra-Smooth Rolling Performance
- Effortless Glide with Every Use
- Quiet, Controlled Soft-Open & Soft-Close Action
- Box Track Has Zero Risk of Derailment
- Modular Design Scales with Any Weight Requirement
- Durable, All-Metal Dampers with Premium Hydraulic Control
Technical Info
- Material: Aluminum
- Mounting Style: Ceiling
- Max Weight lbs: 264 lbs
- For Glass Thickness: 3/8-1/2"
- Finish: Satin Anodized
- Length: 236 Inches
- Weight lbs: 76.3
- No glass processing required
- Pre drilled track every 7 7/8"
What's Included
- 1x Standard Running Track - 236" Length - Satin Anodized - BO5806011
- 2x Carriage with Soft Close - 264 lbs - BO5800120
- 1x Recessed Clamp Set with Floor Guide - 1 Door - BO5800011
- 1x Recessed Profile Set - 1 Sliding Panel - 236" Length - Satin Anodized - BO5806051
- 1x U-Channel 1 x 1 x 120" - Satin Anodized - BA6703448
