DBR-N1526-2SA - Bohle BT Kit Pocket Ceiling Mounting - 157in - 264lbs - Double Doors - Satin Anodized
Product Description
Product Info
This kit provides everything needed to install two, soft closing pocket doors.
About MasterTrack® BT
The MasterTrack® BT custom sliding door series is engineered for versatile installation environments — surpassing standard ceiling or wall-mounted setups. Designed with flexibility in mind, the modular MasterTrack® BT system enables limitless interior design possibilities. Whether you're configuring multi-panel runners, pocket doors or seamless flush-to-ceiling sliding doors, this system supports rapid installation using just a few key components, including a compact track with an integrated glass suspension for a modern, minimalist appearance.
Product Highlights
- Ultra-Smooth Rolling Performance
- Effortless Glide with Every Use
- Quiet, Controlled Soft-Open & Soft-Close Action
- Box Track Has Zero Risk of Derailment
- Modular Design Scales with Any Weight Requirement
- Durable, All-Metal Dampers with Premium Hydraulic Control
Technical Info
- Material: Aluminum
- Mounting Style: Ceiling
- Max Weight lbs: 264 lbs
- For Glass Thickness: 3/8-1/2"
- Finish: Satin Anodized
- Length: 157 Inches
- Weight lbs: 18.6
- No glass processing required
- Pre drilled track every 7 7/8"
What's Included
- 1x Standard Running Track - 157" Length - Satin Anodized - BO5804011

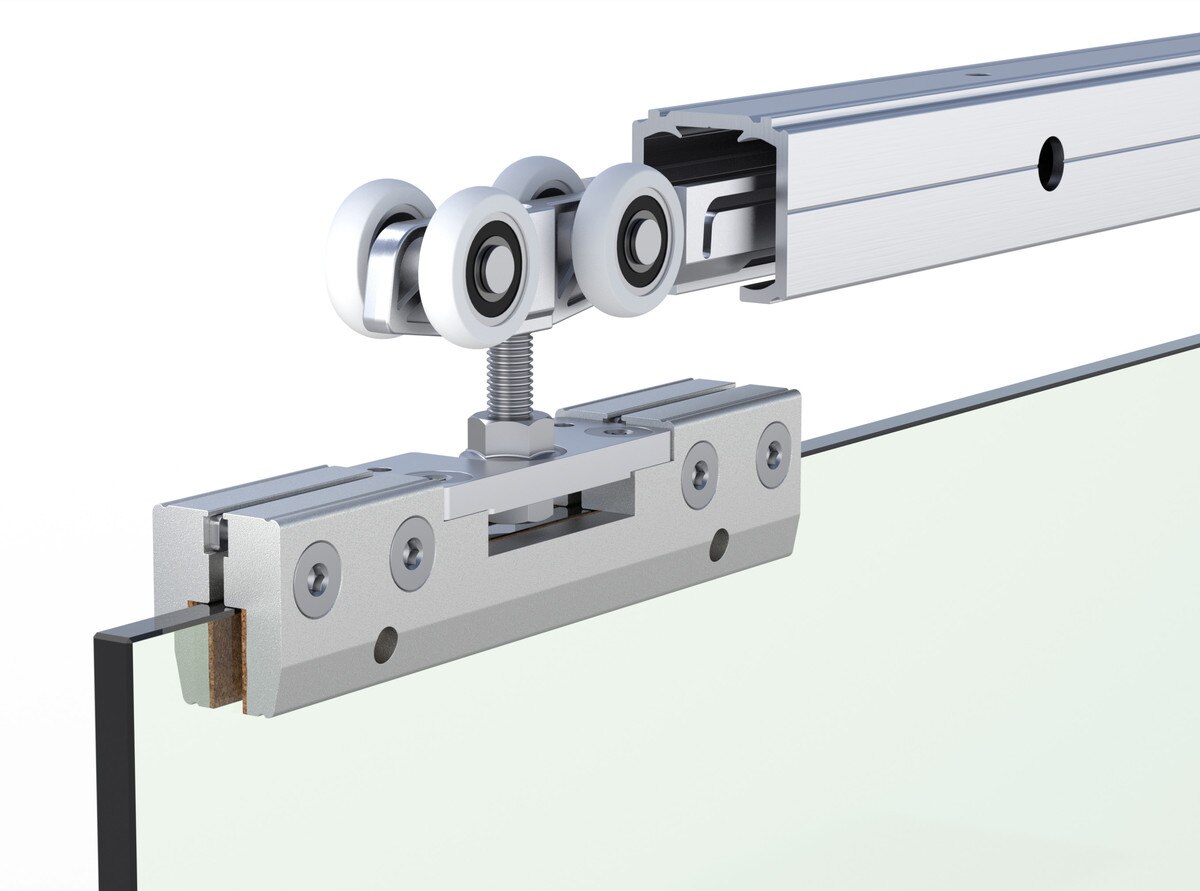

- 4x Carriage with Soft Close - 264 lbs - BO5800120
- 4x Standard Glass Clamp - BO5800001
- 2x Bottom Guide - Satin Anodized - BO5700005
- 2x Cover Profiles and Cover Caps for Glass Clamps - 48" Length - Satin Anodized - BO5801271
Downloads
Installation Manuals
Mastertrack BT® - Instruction Manual Pocket Ceiling Mounting
