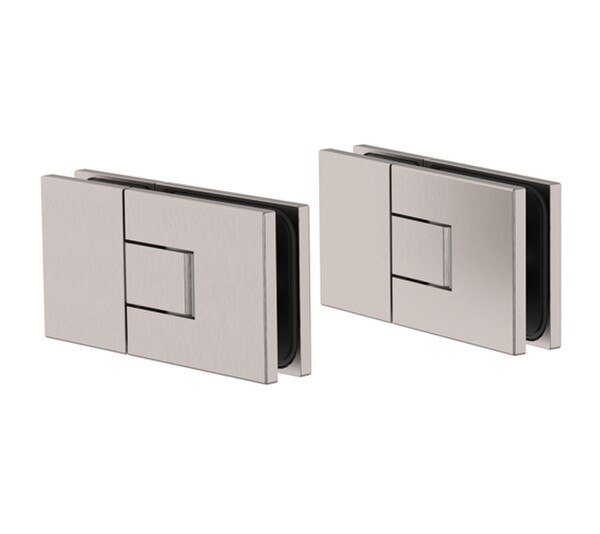

Juna Adjustable 180° Glass-Glass Hinge - Brushed Stainless Steel Look (Set of 2)

SKU BO5410301
Finish: Brushed Stainless Look
Function: Glass/Glass Hinge
(0)No Reviews yet

In Stock - Ships Today


Developed and designed by Bohle, the Juna shower door hinge combines aesthetics and functionality with quality and “Made in Germany” workmanship. We therefore grant a voluntary manufacturer's warranty of five years for the Juna shower door hinge series. Minimum gap dimensions and concealed screws emphasize the supreme quality of this swinging door hinge. Juna also facilitates installation in many respects: The zero position adjusting screw is readily accessible and enables convenient adjustment. Thanks to the innovative clamping technology, no disturbing notches are produced on the hinge axis - for a precise adjustment of the zero position down to the millimeter. The clamping screws and the zero position fixing screw have uniform screw heads which can be conveniently tightened with just one tool.The centered mounting plate enables the optimum positioning of the cover cap. A stable plug connection guarantees its firm and precise fit.

The high quality components made of brass and stainless steel in the inside of the hinge guarantee a long service life of the product. In addition, comprehensive tests with 100,000 test cycles as per DIN 14428:2015-09, section 5.5 prove the carrying capacity of the hinges of up to 110 lbs [50 kg].

In general, Juna shower door hinges can be mounted without profiles. The use of sealing strips, however, minimizes water leakage. The sealing strips must be interrupted in the hinge area.
  • Glass thickness 1/4", 5/16", 3/8" [6, 8, 10]
  • Self-closing function
  • Zero position adjustment down to the millimeter

Product highlights
  • Perfect zero position adjustment thanks to innovative clamping technology
  • Supreme design with minimum gap dimensions and concealed screws
  • Efficient mounting with only one tool
  • Precise and firm fit of cover caps
  • Juna has been successfully tested for 100,000 swing door cycles. (DIN EN 14428:2005-02, section 5.5)

Technical Data
  • Door type: Swinging
  • Line: Juna
  • Mounting: glass/glass 180°
  • Max. door weight per pair: 110 lbs [50 kg]
  • Max. door height: 88-9/16" [2250]
  • Max. door width: 39-3/8" [1000]
  • Material: brass / stainless steel
  • Return motion: yes
  • Adjustable zero position: yes
  • Wall mounting concealed: yes
  • Screws concealed: yes
