BO5783031N - MasterTrack® FT - Kit - Ceiling Mounting with Fixed Sidelight - 118in - 176lbs - Satin Anodized
Product Description
Product Info

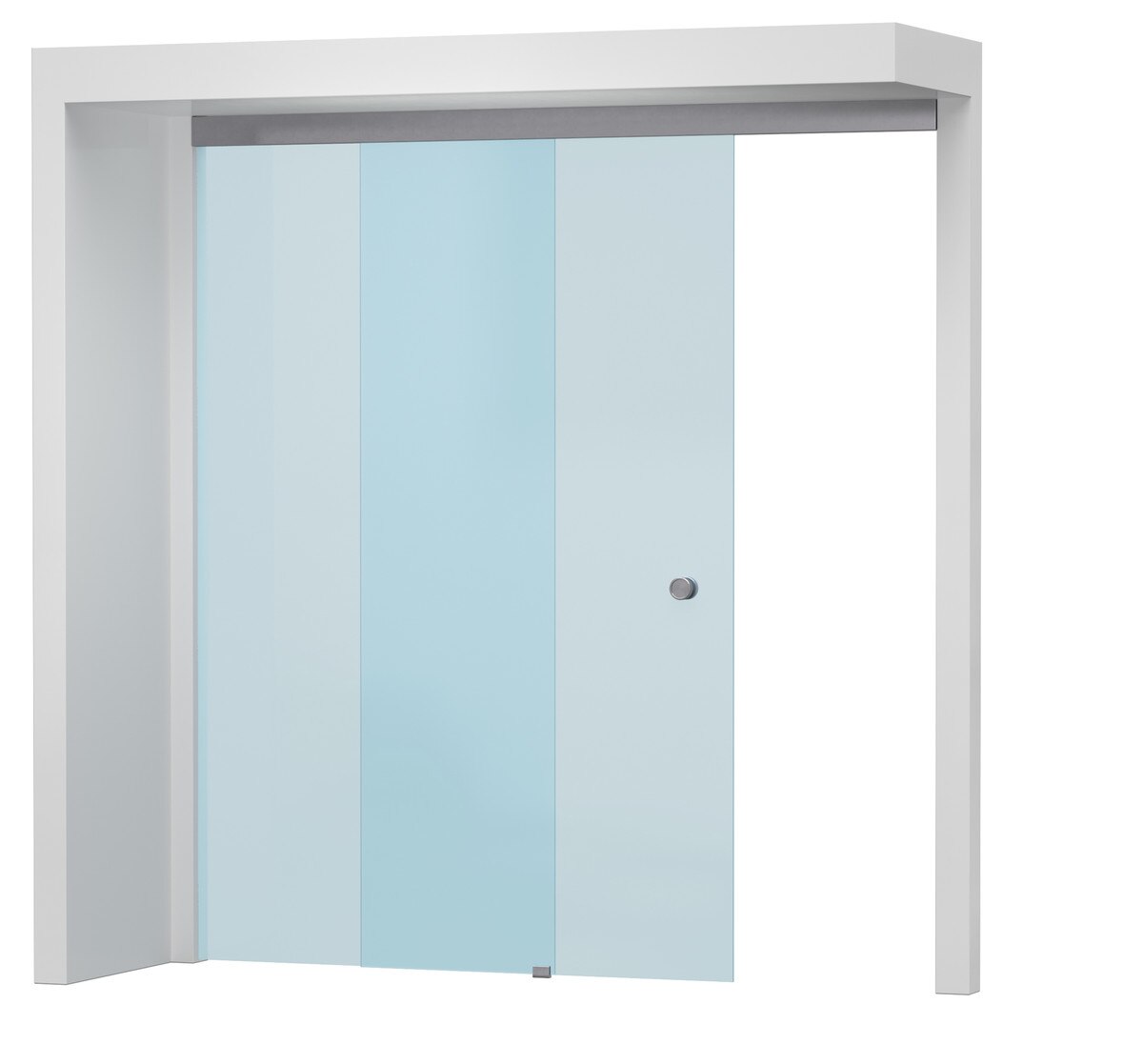

This ceiling mount kit, with sidelite, includes everything needed to install one soft close sliding door.
About MasterTrack® FT
MasterTrack® FT delivers a premium engineered solution for sliding glass door systems featuring industry-leading hardware technology and whisper-quiet operation. What sets it apart: complete installation in just a few simple steps. Setup is fast, straightforward, and budget-friendly.
Product Highlights
- Ultra-Smooth Rolling Performance
- Effortless Glide with Every Use
- Quiet, Controlled Soft-Open & Soft-Close Action
- Secure Anti-Jump Engineering for Total Safety
- Sleek, Modern Look That Elevates Any Space
- Fast, Intuitive Installation That Saves Time and Labor
- All Adjustments Accessible from the Front—No Rework Needed
- Modular Design Scales with Any Weight Requirement
- Durable, All-Metal Dampers with Premium Hydraulic Control
Technical Info
- Material: Aluminum
- Mounting Style: Ceiling
- Max Weight lbs: 176 lbs
- For Glass Thickness: 3/8-1/2"
- Finish: Satin Anodized
- Length: 118 Inches
- Weight lbs: 18.8
- No glass processing required
- Pre drilled track every 7 7/8"
- Minimum door width 31 1/8"
What's Included
- 1X Ceiling Mounting With Fixed Sidelite Extrusion - 118" Length - Satin Anodized - BO5703031N
- 1x Carriage Set 176 lbs - BO5708002
- 2x Soft Close 176 lbs - BO5708001
- 1x Bottom Guide - Satin Anodized - BO5700005
Downloads
Installation and Technical Documents
MasterTrack FT® – Installation Manual
MasterTrack FT® – Limits & Deductions
