BO5754034 - MasterTrack® FT - Kit - Ceiling Mounting with Fixed Sidelight - 157in - 330lbs - Brushed Stainless Anodized
Product Description
Product Info
This ceiling mount kit, with sidelite, includes everything needed to install one soft close sliding door.
About MasterTrack® FT
MasterTrack® FT delivers a premium engineered solution for sliding glass door systems featuring industry-leading hardware technology and whisper-quiet operation. What sets it apart: complete installation in just a few simple steps. Setup is fast, straightforward, and budget-friendly.
Product Highlights
- Ultra-Smooth Rolling Performance
- Effortless Glide with Every Use
- Quiet, Controlled Soft-Open & Soft-Close Action
- Secure Anti-Jump Engineering for Total Safety
- Sleek, Modern Look That Elevates Any Space
- Fast, Intuitive Installation That Saves Time and Labor
- All Adjustments Accessible from the Front—No Rework Needed
- Modular Design Scales with Any Weight Requirement
- Durable, All-Metal Dampers with Premium Hydraulic Control

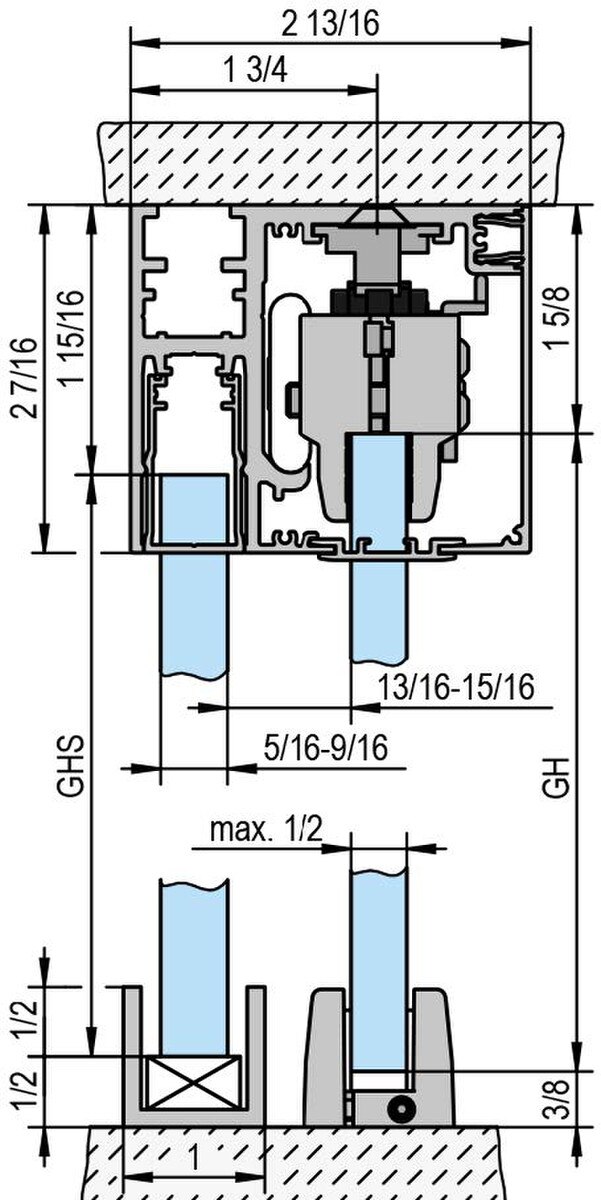

Technical Info
- Material: Aluminum
- Mounting Style: Ceiling
- Max Weight lbs: 330 lbs
- For Glass Thickness: 3/8-1/2"
- Finish: Brushed Stainless Anodized
- Length: 157 Inches
- Weight lbs: 29.2
- No glass processing required
- Pre drilled track every 7 7/8"
- Minimum door width 35 5/8"
What's Included
- 1x Ceiling Mounting With Fixed Sidelite Extrusion - 157" Length - Brushed Stainless Anodized - BO5704034N
- 1x Carriage Set 330 lbs - BO5701502
- 2x Soft Close 330 lbs - BO5701501
- 1x Bottom Guide - Brushed Stainless Anodized - BO5700024
Downloads
Installation and Technical Documents
MasterTrack FT® – Installation Manual
MasterTrack FT® – Limits & Deductions
