BO5756011 - MasterTrack® FT - Kit - Wall Mounting - 236in - 330lbs - Satin Anodized
Product Description
Product Info

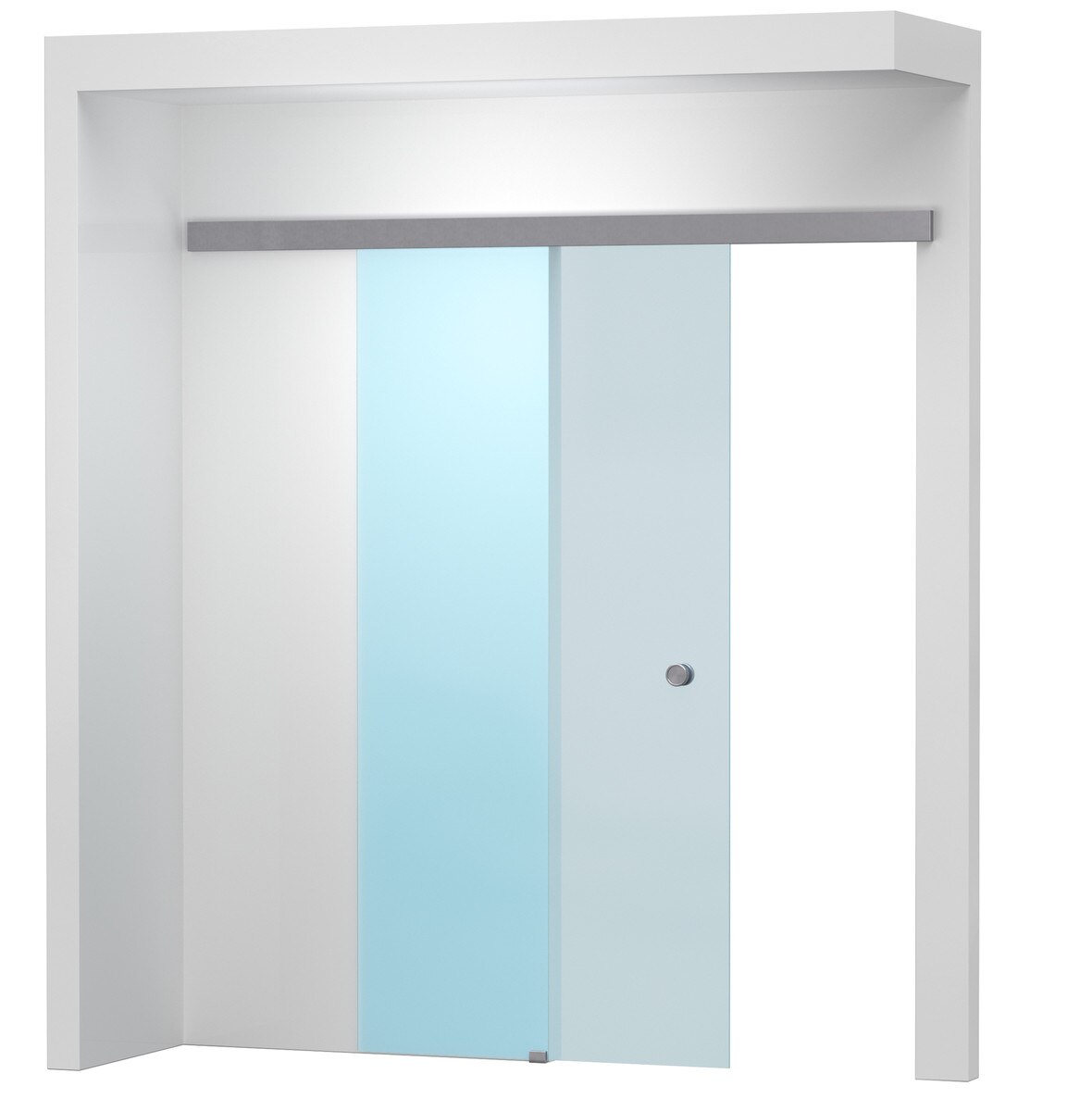

This wall mount kit includes everything needed to install one soft close sliding door.
About MasterTrack® FT
MasterTrack® FT delivers a premium engineered solution for sliding glass door systems featuring industry-leading hardware technology and whisper-quiet operation. What sets it apart: complete installation in just a few simple steps. Setup is fast, straightforward, and budget-friendly.
Product Highlights
- Ultra-Smooth Rolling Performance
- Effortless Glide with Every Use
- Quiet, Controlled Soft-Open & Soft-Close Action
- Secure Anti-Jump Engineering for Total Safety
- Sleek, Modern Look That Elevates Any Space
- Fast, Intuitive Installation That Saves Time and Labor
- All Adjustments Accessible from the Front—No Rework Needed
- Modular Design Scales with Any Weight Requirement
- Durable, All-Metal Dampers with Premium Hydraulic Control

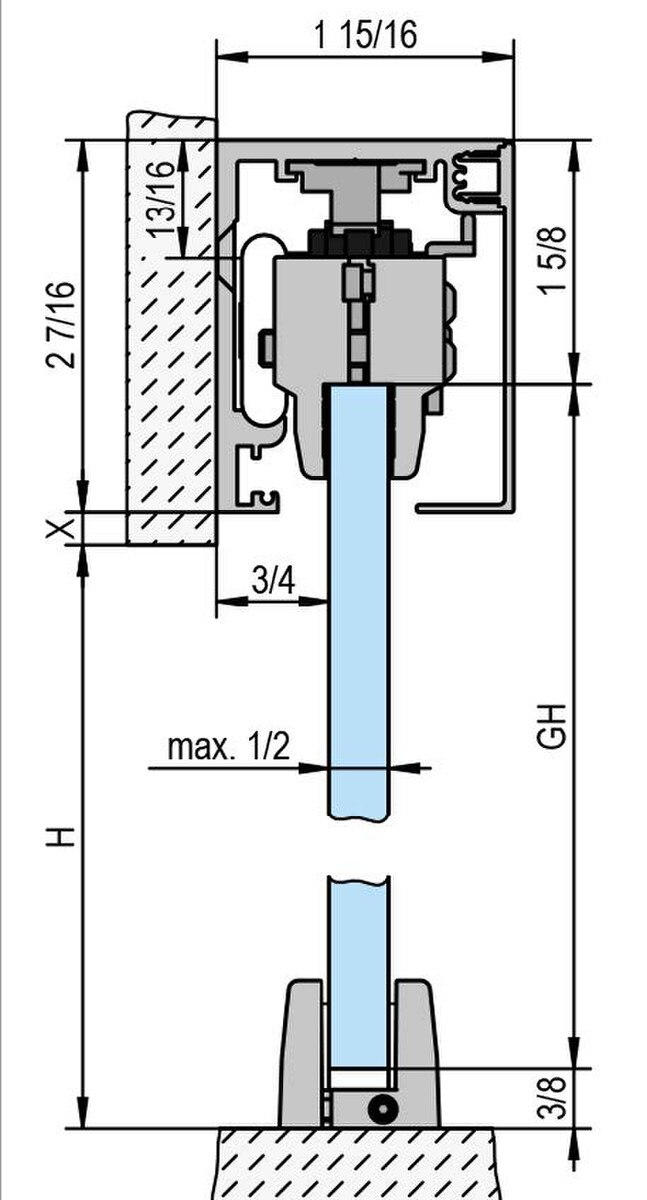

Technical Info
- Material: Aluminum
- Mounting Style: Wall
- Max Weight lbs: 330 lbs
- For Glass Thickness: 3/8-1/2"
- Finish: Satin Anodized
- Length: 236 Inches
- Weight lbs: 30.4
- No glass processing required
- Pre drilled track every 7 7/8"
- Minimum door width 35 5/8"
What's Included
- 1x Wall Mounting Extrusion - 236" Length - Satin Anodized - BO5706011

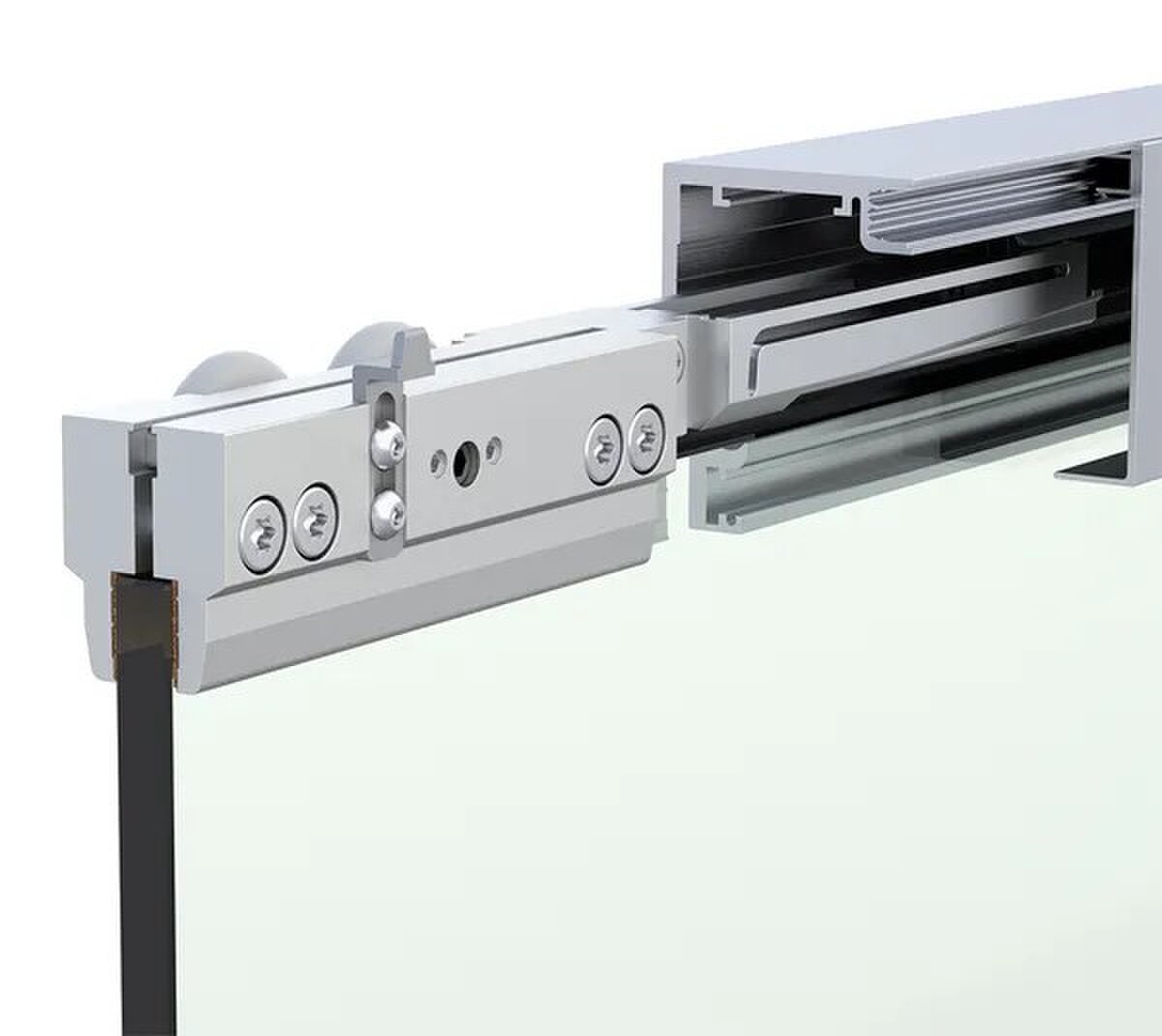

- 2x 330lb Carriages
- 2x Soft Close 330 lbs - BO5701501
- 1x Bottom Guide - Satin Anodized - BO5700005
- 2x Cover Caps for Wall or Ceiling Mount Only - Satin Anodized
Downloads
Installation Manuals
MasterTrack FT® – Installation Manual
MasterTrack FT® – Limits & Deductions
