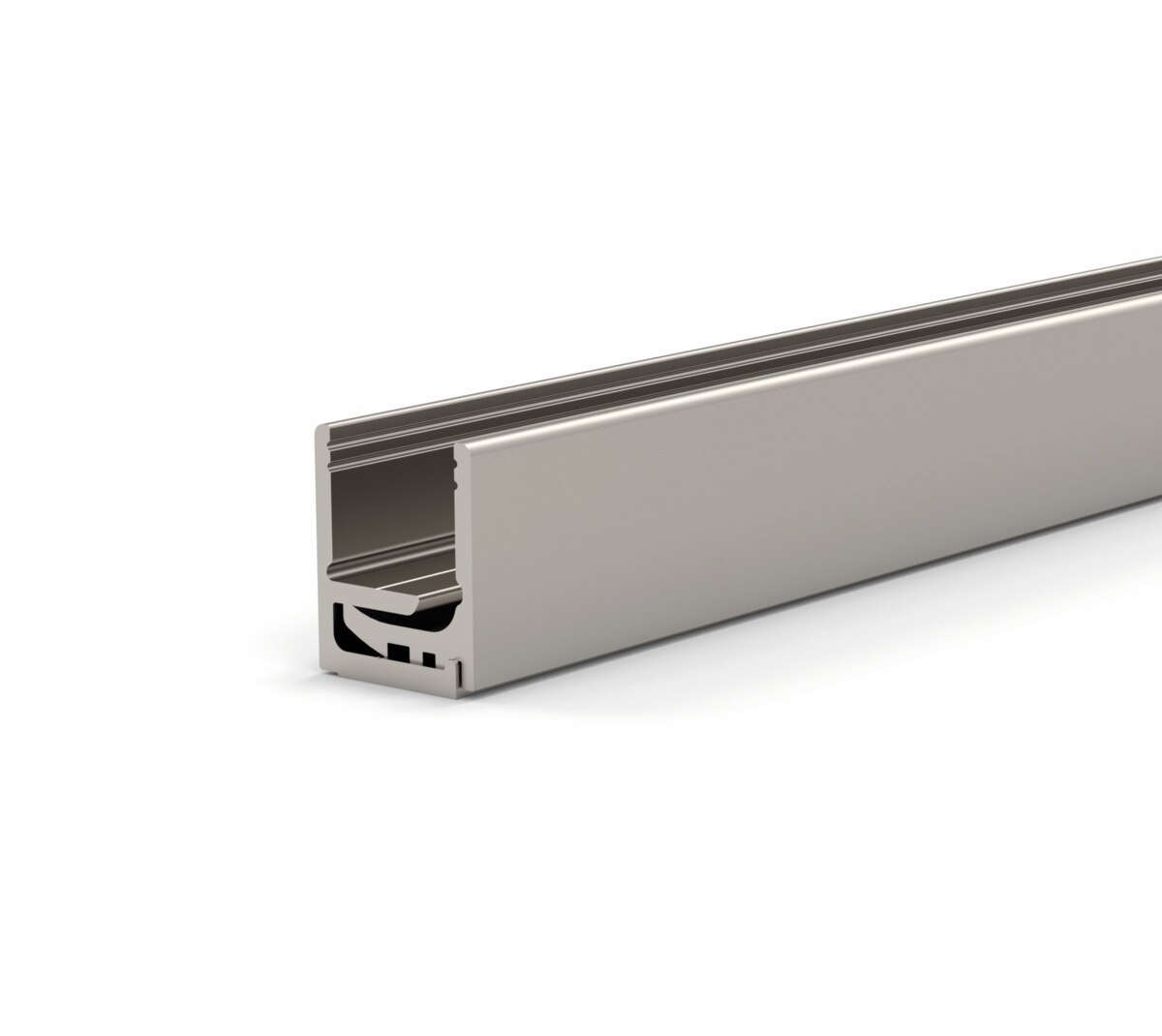

BO5201751 - Bottom/Side 2-Part Channel - 5/16" to 9/16" Glass - 118" - Brushed Stainless Anodized
Product Description
Product Info

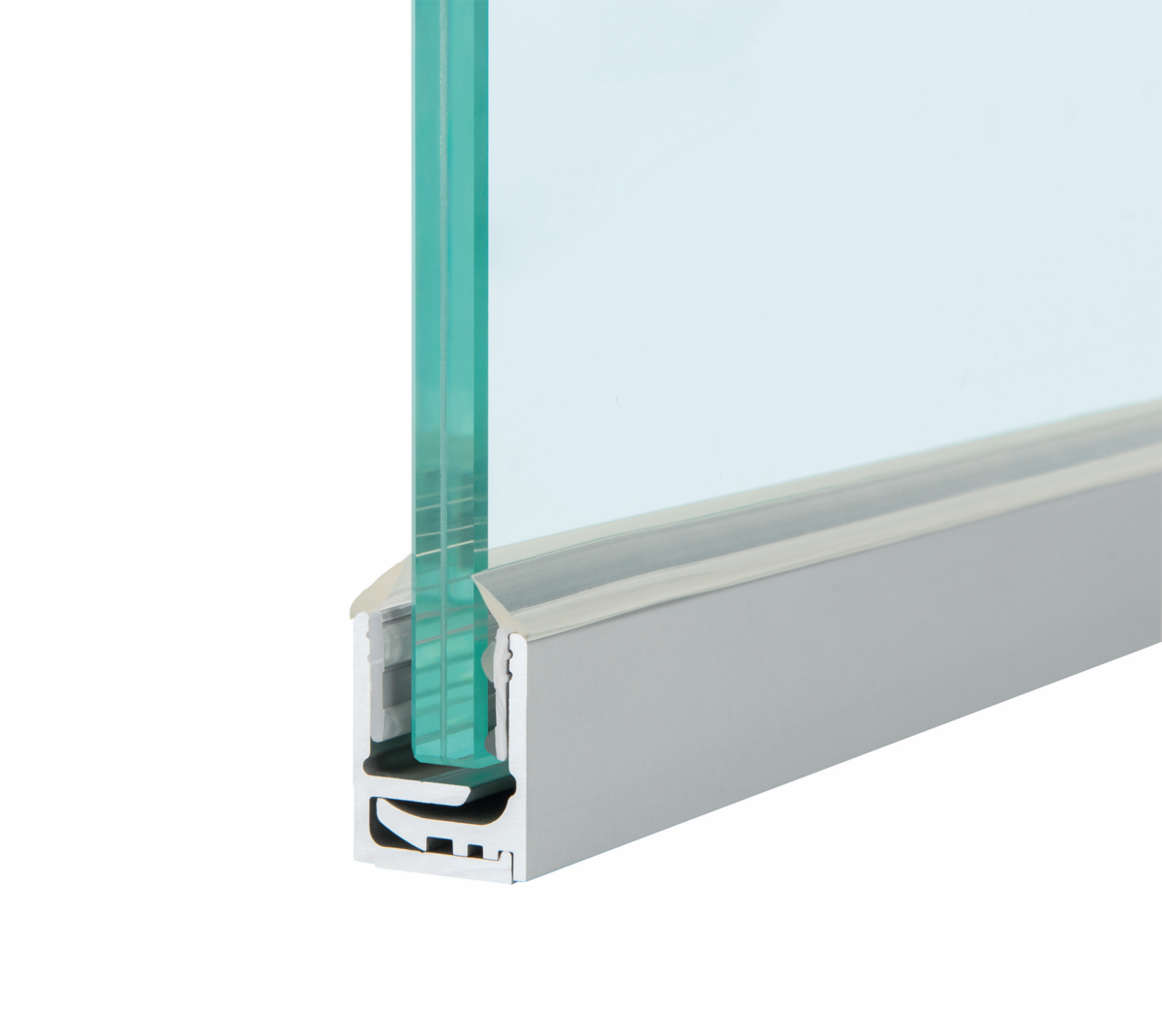

The Bottom/Side 2-Part Channel allows the same size channel to be used around a pane, providing maximum clear views and matching hardware size vs a lift and drop system.
About the 2 Part Channel System
The two-part frame profile, delivered pre-drilled, mounts easily on the floor or wall for a flawless fit. For ceiling installations, you must use the one-piece frame profiles—designed to prevent glass panes from tilting and guarantee safe, hassle-free installation. High-quality plug-in seals eliminate the need for silicone, saving time and effort. Complete the look with matching cover caps for a sleek, professional finish that elevates any room divider.
Product Highlights
- 2 Part design provides top and bottom symmetry
- Durable aluminum material and finish
- Lightweight easy to handle
- Cut to length on site
Technical Info
- Material: Aluminum
- For Glass Thickness: 5/16-9/16"
- Finish: Brushed Stainless Anodized
- Length: 118 Inches
- Weight lbs: 4.9
- Pre drilled every 11.8"
What's Included
- 1x Bottom/Side 2-Part Channel - 5/16" to 9/16" Glass - 118" - Brushed Stainless Anodized - BO5201751
Downloads
Important Information
- This is an oversized item that must ship LTL. Please contact us to order.
- Looking for a longer piece? Longer lengths available — contact Customer Service.
