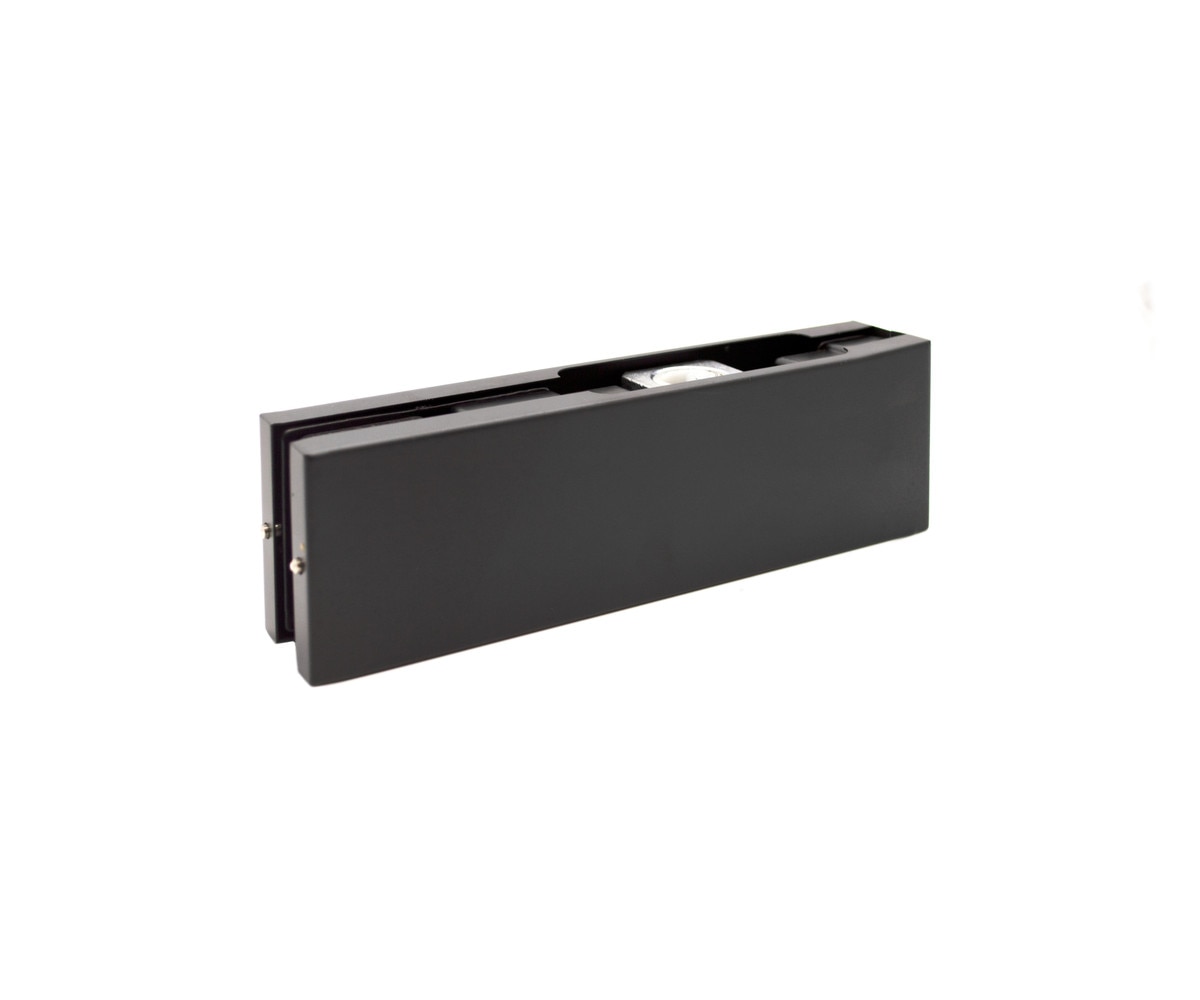

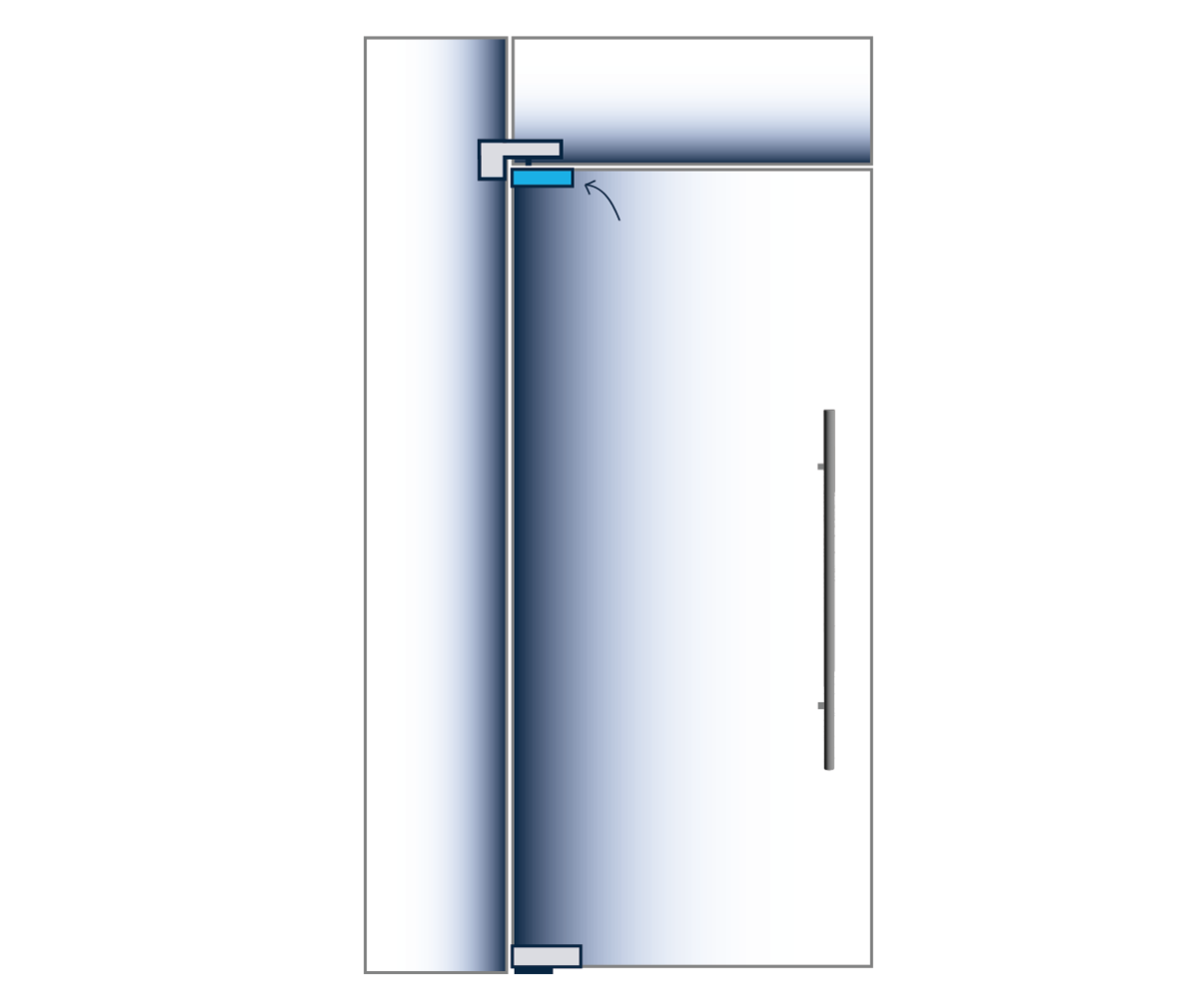

PT20 - Alva Top Door Patch Fitting for Transoms (5/16" - 1/2" Glass) - Matte Black
Details
- with plastic bushing for 9/16" (15 mm) diameter pin

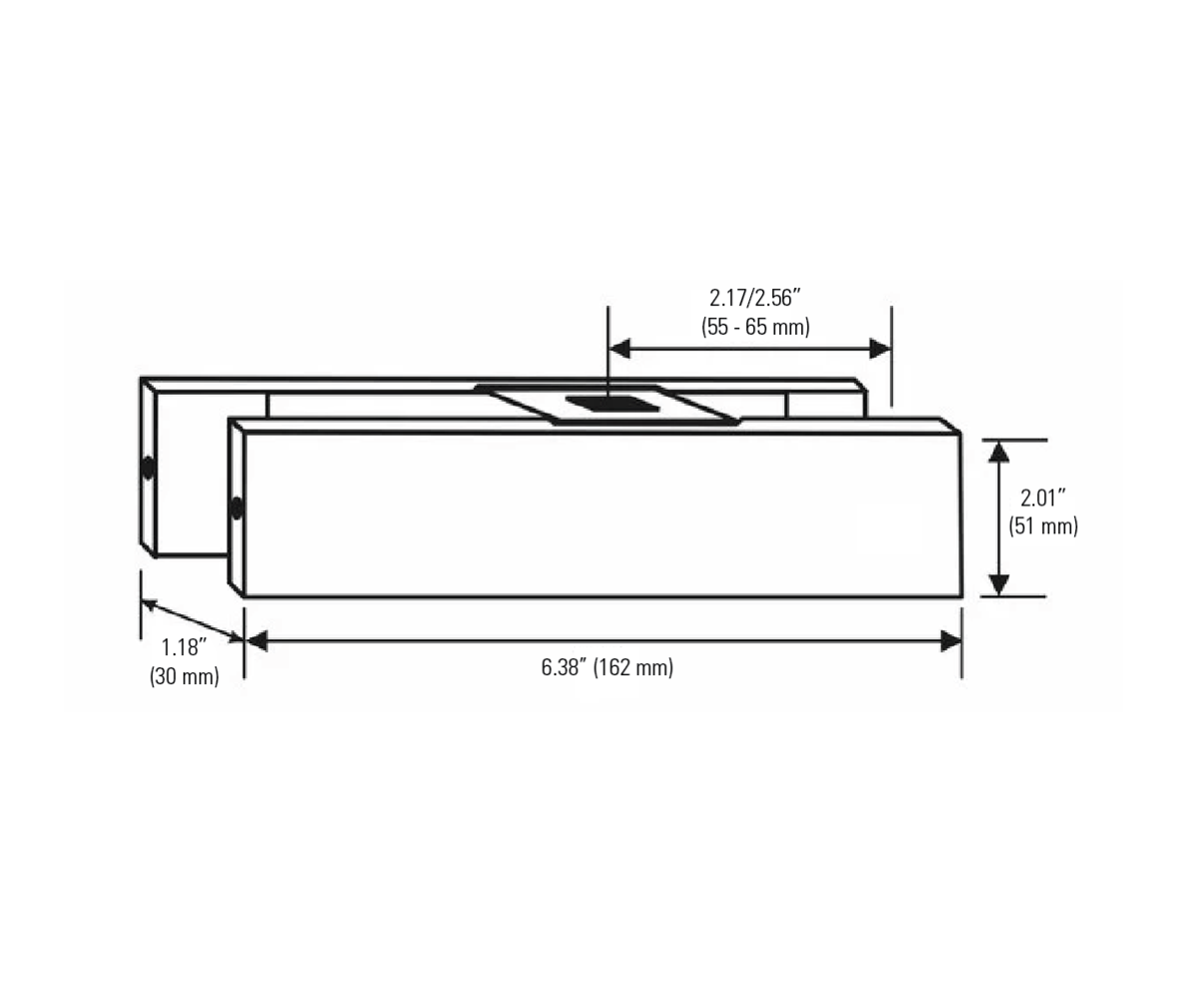

- Adjustable pivot (55/65 mm)
- Glass thickness tempered glass 3/8", 1/2" (10, 12 mm)
- max. door width 47-1/4 in (1200 mm)
- max. door weight 220 lbs (100 kg)
- Material stainless steel AISI 304
Downloads
- Brochures
- ALVA - Elevations Catalog
Instruction Manuals - ALVA - Instruction Manual EN3 / ADA (Standard Duty)
- ALVA - Instruction Manual EN5 (Heavy Duty)
Technical Information - ALVA - Limits and Deductions
- ALVA - Elevations Contents
- ALVA - Glass Cutouts
- Architectural U Channel - Two Part Channel Specifications
